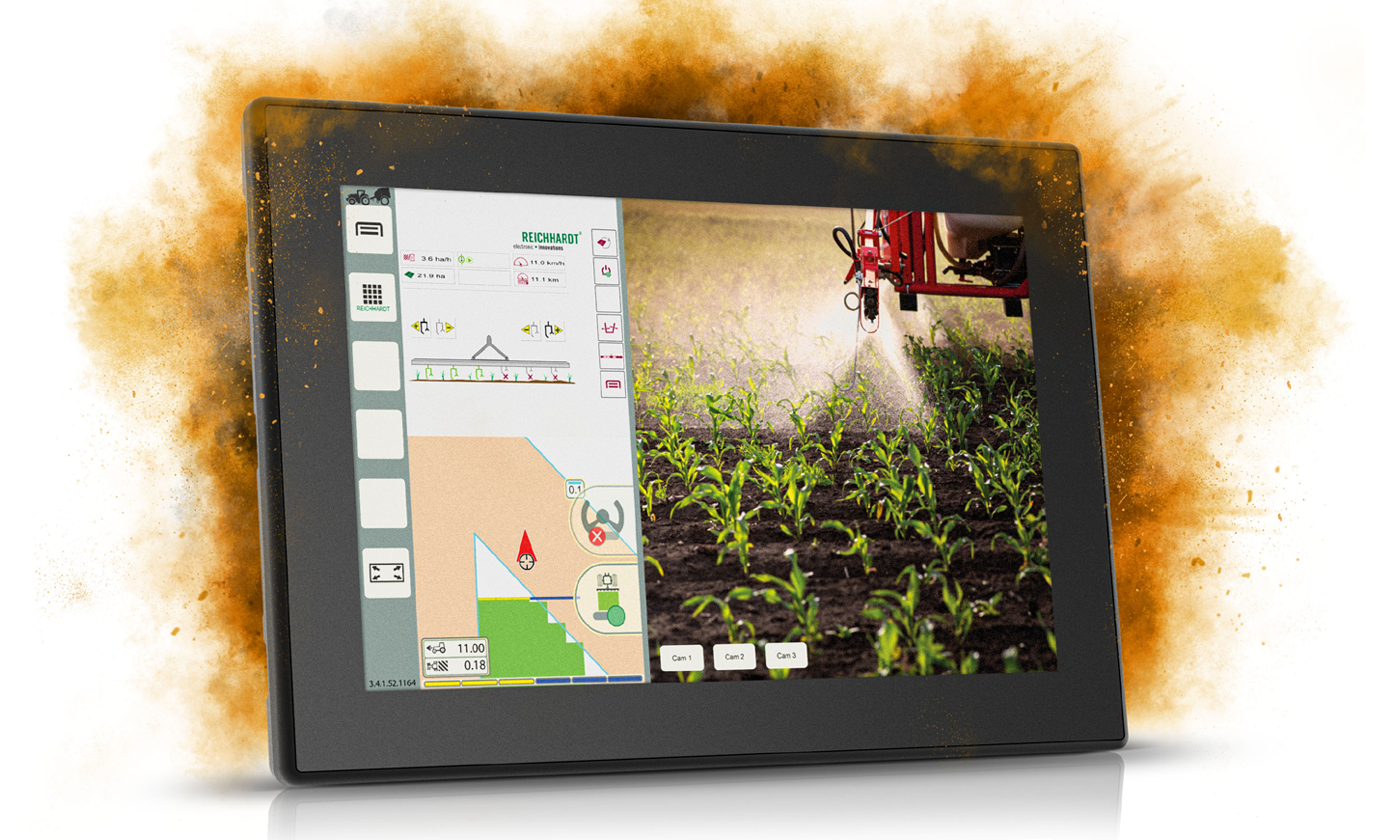

The CCpilot V1090 display computer is designed to address the needs of process control & precision applications including ISOBUS terminals, 2D/3D machine control and guidance systems.
Key features include a 10-inch display, robust aluminium housing, accessible USB port, audio notifications, and fast attach/detach connectors for easy removal and theft prevention. It comes with a rich interface set-up for CAN and Ethernet networking, supporting 1000Base-T1 and 1000Base-TX.
With a high brightness, high contrast Wide XGA resolution IPS type display the CCpilot V1090 provides intuitive user interaction with multi-touch PCAP also with gloves allowing for reliable operation in harsh conditions and readability in direct sunlight aided by the optically bonded screen to reduce reflections and eliminate fogging.
The CCpilot V1090 is available with LinX, our open and modular software platform. It includes firmware and OS support, pre-packaged application toolchains for Qt and CODESYS, and application modules for commonly required functionality.
Combined with CrossControl’s open software platform & windowing framework this becomes a very powerful platform for OEM factory fit HMI systems. It opens up avenues for running multiple software applications with concurrent visualizations in parallel. This means that precision functionality, for example ISOBUS & guidance, can run side-by-side with commonly required HMI system features including base process control, instrumentation, vision systems and embedded manuals.
For HMI solutions in which a single display may not provide the screen real estate needed to offer a good user interface the V1090 and V1290 has inherent support for an optional display link interface for a secondary monitor in sizes 7”, 10” or 12”, or even a 5” display to act as a smart control pad.
Below you find an overview specification of CCpilot V1090. The same information is found in the product leaflet which is available for download and in printed form. Please note that product information may change over time and the latest and correct information is always found on this website. You find additional information in the technical manual and software manuals.
| COMPUTING CORE | |
| OVERVIEW | i.MX 8QuadXPlus, quad core CPU, integrated GPU & M4 Co-processor. |
| CPU | 4 x Cortex A35 @ 1.2 GHz |
| GPU | Vivante GC7000lite high performance graphics processing unit. |
| STORAGE | 8 GB, enhanced mode eMMC pseudoSLC. |
| RAM | 2 GB 32 bit LPDDR4 @ 1200GHz |
| DISPLAY | |
| TYPE | IPS Type with >85° viewing angles in all directions |
| COVER LENS | Tempered glass with AG coating |
| OPTICAL BONDING | Display, touch screen and cover lens optically bonded to achieve sunlight readability. |
| SIZE AND RESOLUTION | 10.1" WXGA, 1280x800 pixels |
| COLOR DEPTH | 24 bit, 16 million |
| CONTRAST RATIO* | 800:1 |
| BRIGHTNESS* | 900 cd/m² |
| DIMMING | Yes, in steps, 1-100% |
| AMBIENT LIGHT SENSOR | Yes, enabling automatic dimming |
| HMI | |
| TOUCH SCREEN | Projective Capacitive with up to 10-point multi-touch. Calibrated to support interaction with gloves or be insensitive to water drops. |
| STATUS LED | RGB LED |
| AUDIO | Yes, Buzzer with configurable frequency and volume. Max 85dB @ 10cm from front. Mic In, Line Out for cabin speakers |
| INTERFACES | |
| CAN | 2 ports, physical layer ISO 11898 2:2016. ISO11783-5:2019 compatible (2ms interrupts with a capacitor). Configurable bit rate. CAN FD compliant. |
| USB | USB 1 x USB 2.0 high speed, |
| ETHERNET | 1 x 1000BASE-T, 1 x 1000BASE-T1 |
| I/O | |
| WIRELESS CONNECTIVITY | Optional module with WiFi 802.11ac/a/b/g/n, dual-band 2.4/5 GHz and Bluetooth 5.0. |
| POWER SUPPLY | 12/24 VDC nominal, range 9-36 VDC. Power on from 4.5 Volt over DC. |
| KEY SWITCH | 1 input, for start-up/suspend/resume/shutdown. |
| MECHANICAL | |
| HOUSING MATERIAL | Aluminium |
| INSTALLATION | 4 point VESA 75 mount |
| CONNECTORS | Deutsch DTM06-12 for power, CAN. I/O, ignition, RS232 and Audio. M12 for Ethernet, Fakra antenna. USB A socket on side. |

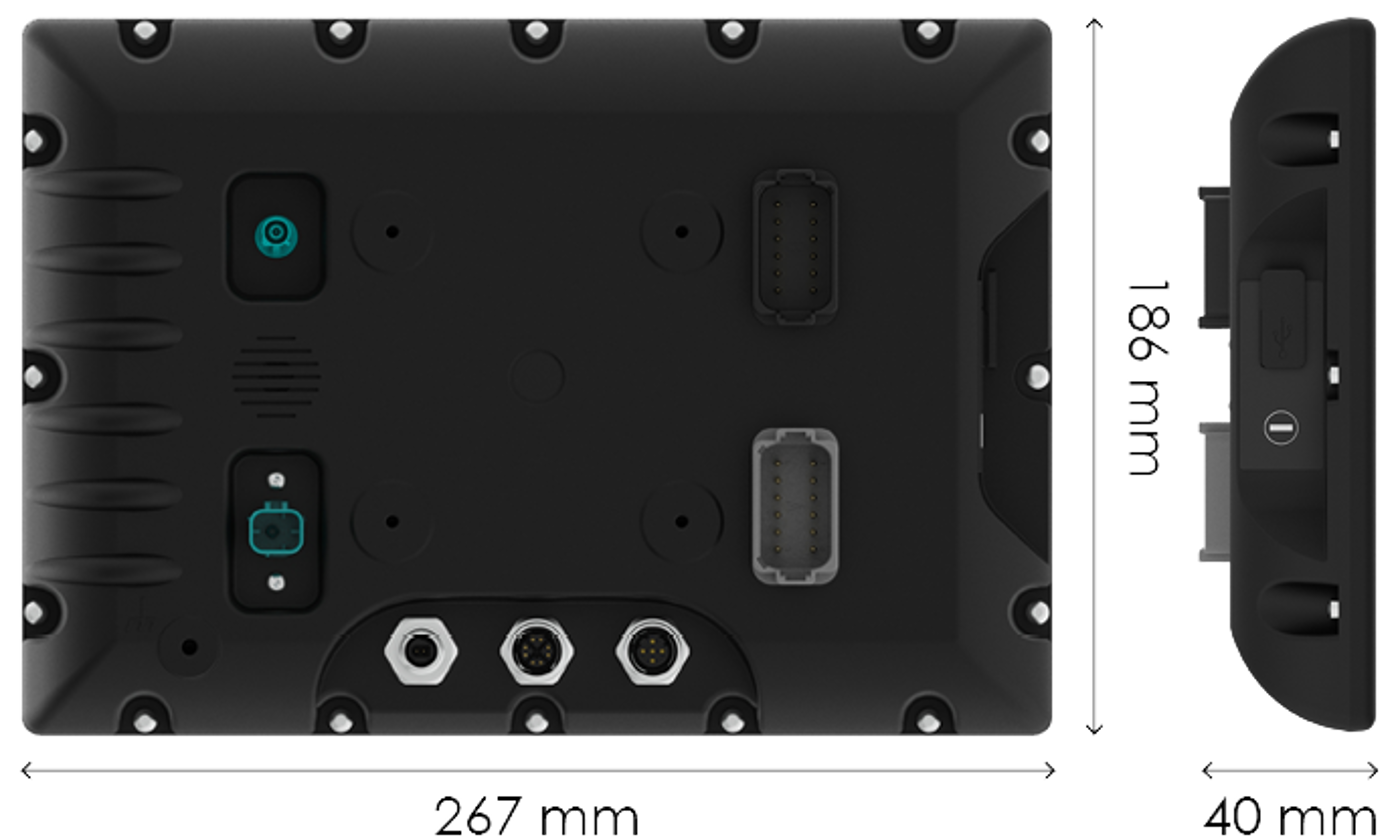

| DIMENSIONS (mm) | 267 x 186 x 40 |
| WEIGHT (g) | ~ 1500 g |
| ENVIRONMENTAL SPECIFICATIONS | |
| IP CLASS | IP65, 66, and 67 |
| EMC CONFORMITY | 2014/30/EU, ISO 14982, ISO 11783-5:2019 (tolerates 2ms interrupts.) ISO 11783-2:201, ISO 13766-1/2 |
| VIBRATIONS | IEC 60068-2-64. Random, 0.02g²/Hz 5-2000Hz 3x3h |
| SHOCK | IEC 60068-2-27.±25g /6ms±3 x3, 15000 total shocks |
| TEMPERATURE RANGE (°C) | IEC 60068-2. Operational -30°C to +70°C, 5C/min, 1h hold time, 20 cycles. -30C and +70 C for 24 hours. Storage -40°C to +80°C |
| Other | Chemical resistance, UV, Ball Drop test |
| OPERATING SYSTEM | |
| SYSTEM | Custom Linux system based on Yocto 4.0+ |
| KERNEL | 5.15+ (Long Term Support) |
| BSP | Available to create a custom Linux image |
| COMPUTING AND GRAPHICS APIs | Support for advanced UX and computing tasks: OpenGL ES, Vulkan, OpenCL, OpenVG. |
| BOOTUP TIME | Configurable. Cold boot 3-7 sec, resume <1 sec |
| SOFTWARE FRAMEWORKS & TOOLS | |
| DEVELOPMENT ENVIRONMENT | Virtual machine or Native Linux. |
| PROGRAMMING | Supported languages include C++, C, QML, JavaScript, Python, HTML5, IEC61131-3. |
| GCC COMPILER | GCC C++17 or newer |
| UI FRAMEWORKS | Qt 5.15+ Open Source. Will support Qt 6. Qt Commercial is optional, enables closing access to the system. Support for Web frameworks. |
| WINDOWING | Weston, Qt Wayland. X Wayland. Direct EGLFS is available if windowing is not required. |
| APPLICATION PLATFORM | |
| LinX Software Suite, open and modular platform based on Qt, common for all CCpilot products. Examples of modules and components listed below. | |
| GUI DESIGN | UX Designer, a pre-built virtual machine with Qt Creator, compilers, libraries, graphical components and templates. |
| CAN NETWORKING | Fieldbus Access, easy configuration of J1939 and CANopen networks. |
| ISOBUS | Universal Terminal |
| REMOTE APPLICATION ACCESS | VNC server and client, web browser and server. |
| SOFT PLC | CODESYS 3.5 |
| DIGITAL VIDEO | Ready-made solution for displaying multiple digital camera streams over Ethernet. RTP, MPEG4, MJPEG, H.264 (4Kp30) and H.265. Support for controlling camera settings like resolution and frame rate. |
| PLATFORM SUPPORT | |
| Below you find specifications of features for which the product platform has inherent hardware support. These are not currently available in the standard product specified above but may be added over time in the generic evolution of the product, or added for a specific, larger customer program. | |
| LARGER STORAGE | Expandable up to 32 GB enhanced mode eMMC pseudoSLC. Possible to increase storage even more through Mini-PCIe card (see below). |
| TOUCH SCREEN SENSITIVITY | Option to have touch controller calibrated for special use cases. |
| SECURITY | RSA/AES, elliptic-curve cryptography, key storage, secure boot-up, signed applications, docker. |
| QT AUTOMOTIVE | Supports Qt Automotive, featuring e.g. safe rendering and IVI applications. |
| MONITOR | Optional display link for additional monitors |
| EXPANSION CARDS & MODULES | Mini-PCIe boards and modules can be added for extending functionality and performance. E.g. AI/ML accelerator modules, radio and connectivity modules, storage cards. |
| OS IN CO-PROCESSOR | Supports use of an RTOS in the integrated Cortex-M4F companion microcontroller (co-processor). For implementation of real-time critical and safety functionality |
| KEY SWITCH | Support for a second key switch for pre-ignition. |
| FAST BOOT | Configurable to 3 sec, System resume <1 sec |
| * Typical value | |
All the packages compatible with CCpilot V1090 computer display are available for download here.
Display computers with iMX8 application processor
Learn about the CrossControl platform for machine intelligence as Anders Svedberg and Dr Markus Wallmyr showcase our next generation display computers with iMX8 application processor.

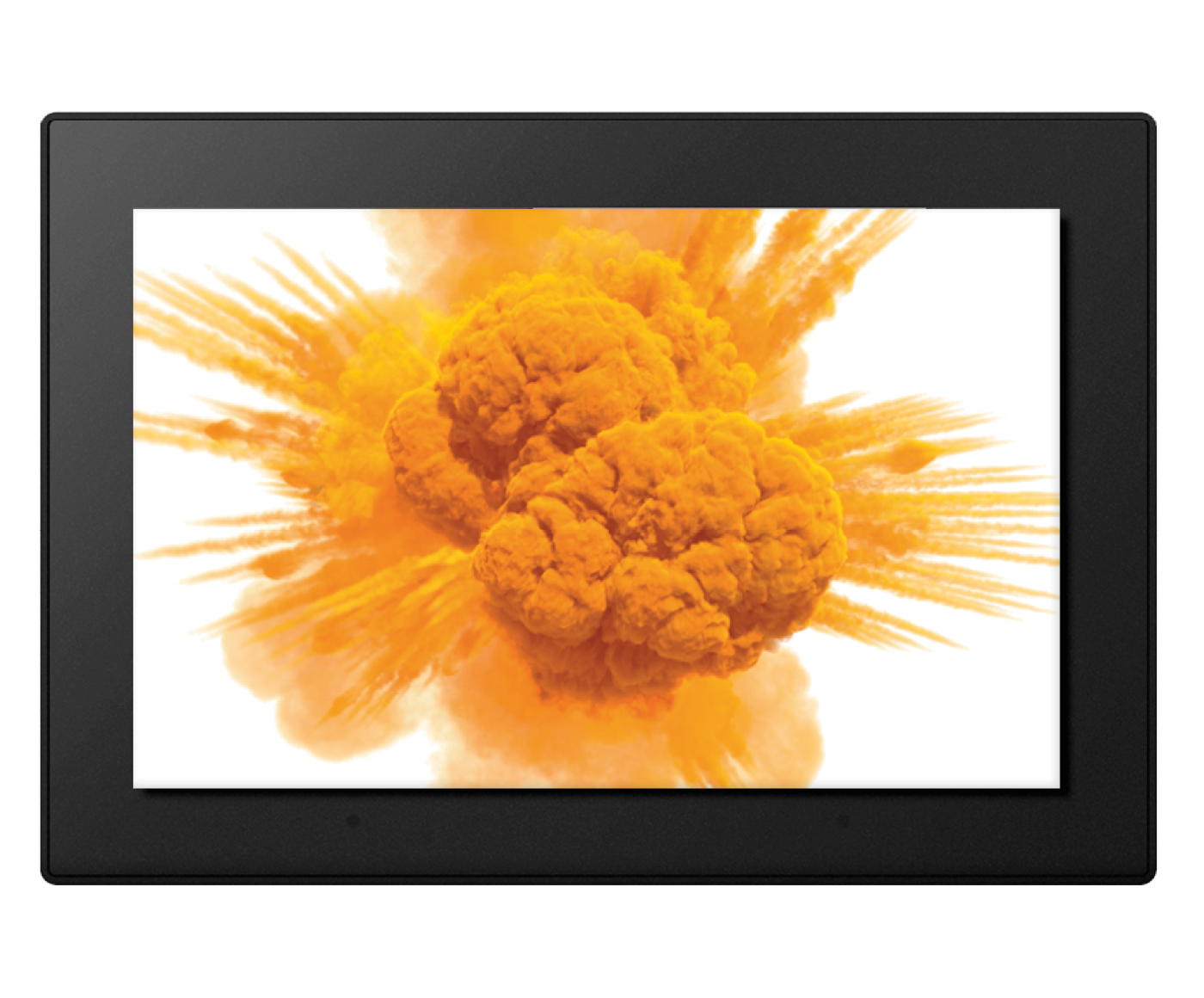

Outstanding Graphics performance
Our next generation technology platform, featuring iMX8 application processors, boasts more than 3 times the graphical performance of earlier generation industrial ARM cores.
SOLUTION FOR DIGITAL VIDEO
The new Vision line offers outstanding support for digital cameras, offering very high picture quality and low latency. The platform supports multiple, simultaneous camera streams to one display, with the option to switch between resolutions when in grid or full screen mode.

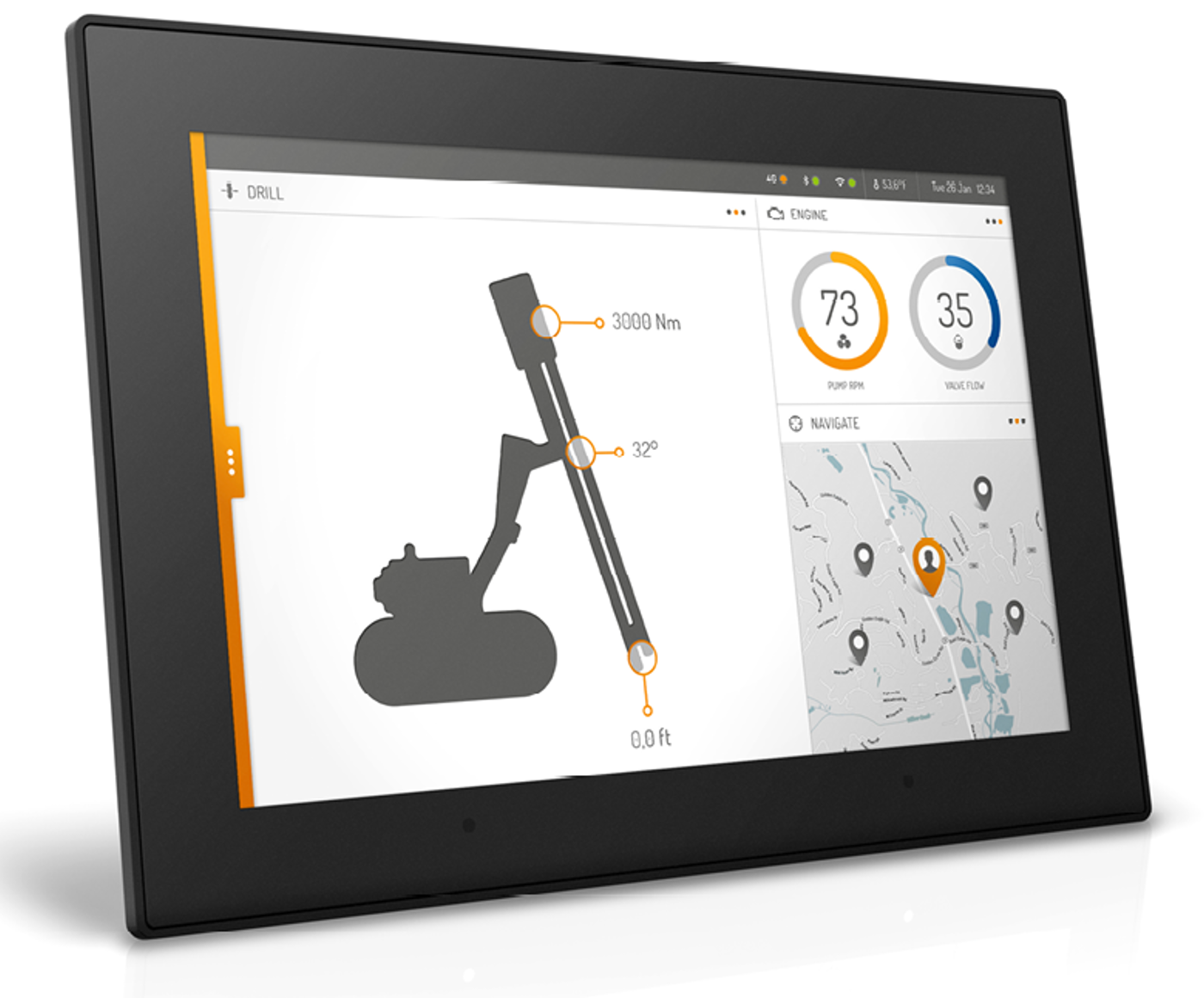

Windowing
Deploy seamless solutions that can integrate multiple independent applications into one screen with advanced and modern windowing support.
