The 7” CCpilot V700 is based on an i.MX 8DualXPlus processor which features a very powerful GPU with much higher graphics performance than earlier generations of ARM processors.
The V700’s 7” high brightness, optically bonded, screen uses IPS type technology which offers best in class viewing angles and contrast for visibility in all conditions without the risk of fogging. It comes with a multi-touch PCAP touch screen for intuitive user interaction also with gloves. Wired interfaces include Ethernet, CAN and high speed USB and the option to add wireless connectivity.
The CCpilot V700 is available with LinX, our open and modular software platform. It includes firmware and OS support, pre-packaged application toolchains for Qt and CODESYS, and application modules for commonly required functionality. System designers can choose the level, configuration and development tools that fit their needs.
With the open platform approach, customers can base their solution on a robust and secure base while keeping the flexibility to work with alternative toolchains or easily deploy existing inhouse or 3rd party applications.
The platform on which the CCpilot V700 is based supports rapidly emerging technologies like multiple digital camera streams, stream stitching to create panoramic views, object detection.
With its vast software capabilities and state-of-the art hardware, the CCpilot V700 is a future ready platform for machine intelligence.
Below you find an overview specification of CCpilot V700. The same information is found in the product leaflet which is available for download and in printed form. Please note that product information may change over time and the latest and correct information is always found on this website. You find additional information in the technical manual and software manuals.
| COMPUTING CORE | |
| OVERVIEW | i.MX 8DualXPlus, dual core CPU, integrated GPU & Co processor. IMX8X is designed to meet automotive requirements for safety & reliability. |
| CPU | 2 x Cortex A35 @ 1GHz |
| GPU | Vivante GC7000lite high performance graphics processing unit for 3D, 2D & vector graphics. With 1600 Mpixels/s and 52 GFLOP it delivers 2-3X the performance compared to the IMX6's Vivante GC2000. |
| STORAGE | 4 GB eMMC in robust pseudoSLC mode |
| RAM | 1 GB 32 bit LPDDR4 @ 1200mhz |
| DISPLAY | |
| TYPE | IPS Type with >88 degree viewing angles |
| COVER LENS | Tempered glass with AG coating |
| OPTICAL BONDING | Yes. IPS screen and cover lens optically bonded to achieve sunlight readability. |
| SIZE AND RESOLUTION | 7" WVGA, 800x480 pixels |
| COLOR DEPTH | 24 bit |
| CONTRAST RATION* | 1000:1 |
| BRIGHTNESS* | 800 cd/m2 |
| DIMMING | Yes, in steps, 1-100% |
| AMBIENT LIGHT SENSOR | Yes, enabling automatic dimming |
| HMI | |
| TOUCH SCREEN | Projective Capacitive with up to 10-point multi-touch. Calibrated to support interaction with gloves and is in-sensitive to water drops from rain etc. Sensitivity is also adjustable based on operating conditions and application. |
| STATUS LED | RGB LED |
| BUZZER | Yes, Configurable frequency and volume. Max 75dB @ 10cm from front. |
| INTERFACES | |
| CAN | 2 x CAN ports, physical layer ISO 11898 2.0B. Configurable bit rate. |
| USB | 1 x USB 2.0 high speed |
| ETHERNET | 1 x 10/100Base-T |
| WIRELESS | Possibility to integrate Bluetooth®chip, version 5. |
| POWER SUPPLY | 9-36 VDC. CPU and communication operational down to 6 VDC |
| KEY SWITCH | 1 Key switch input, for start-up/suspend/resume/shutdown |
| MECHANICAL | |
| HOUSING MATERIAL | Valox 357x |
| INSTALLATION | Panel mounted or 3 point RAM mount |
| CONNECTORS | 8 pin DIN M12 for power and CAN ports 4 pin DIN M12 for Ethernet 5 pin DIN M12 for USB |

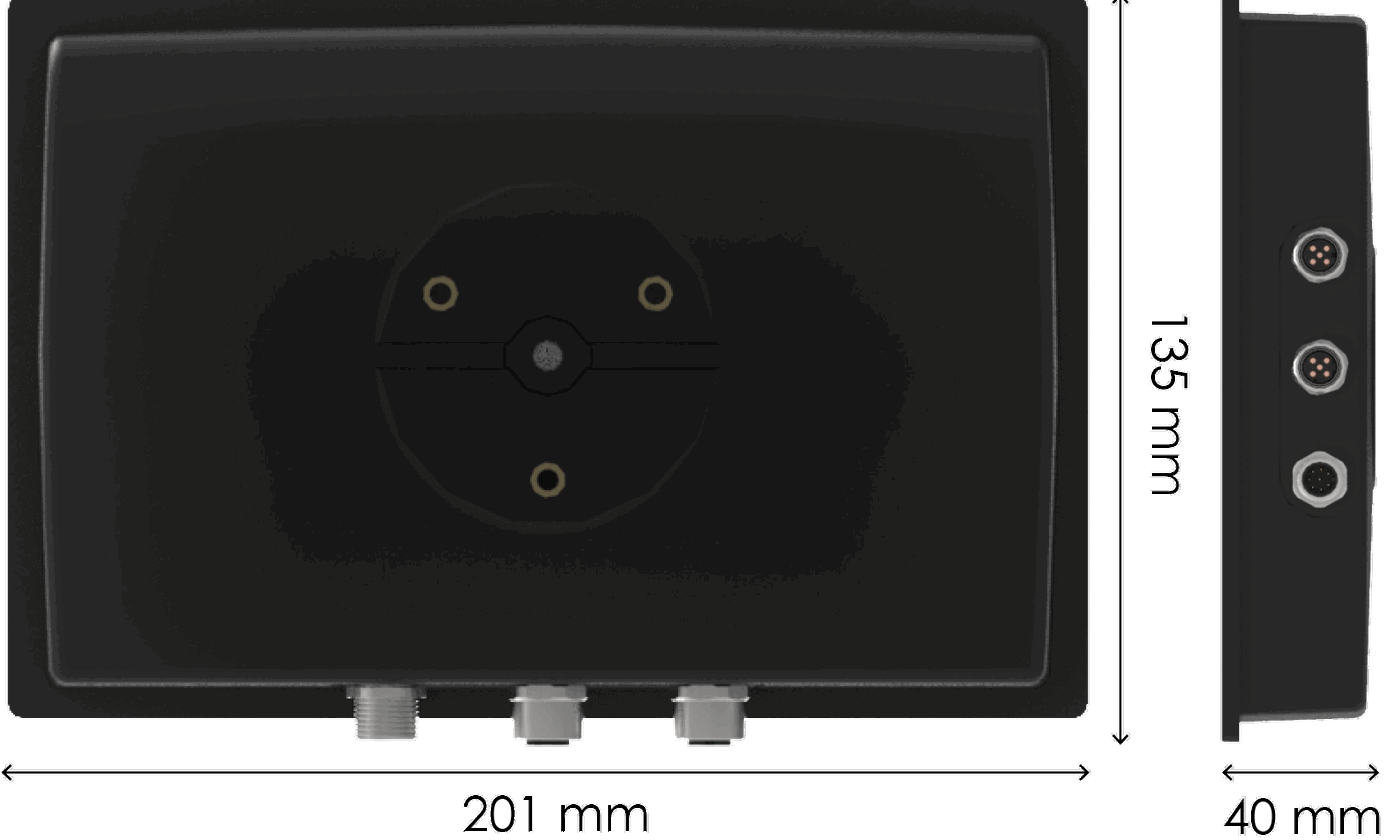

| DIMENSIONS (mm) | 201W x 135H x 40H |
| WEIGHT (g) | 650 |
| ENVIRONMENT | |
| IP CLASS | IP65, IP66 and IP67 |
| EMC CONFORMITY | 2014/30/EU, ISO 14982:2009, ISO 13766-1:2018, EN12895:2015, EN ISO 13766-2:2018 |
| VIBRATIONS | IEC 60068-2-64. Random, 0.02g²/Hz 5-2000Hz 3x3h |
| SHOCK | IEC 60068-2-27.±25g /6ms±3 x3, 15000 total shocks |
| TEMPERATURE RANGE | Operating: -30 to +70, Storage: -40 to +85 |
| OPERATING SYSTEM | |
| SYSTEM | Custom Linux system based on Yocto 3.0 or newer |
| KERNEL | 5.4 (Long Term Support) |
| BSP | Yocto 3.0 or newer |
| COMPUTING AND GRAPHICS APIs | Support for advanced UX and computing tasks: OpenGL ES 3.1, Vulkan, OpenCL 1.2, OpenVG 1.1 |
| BOOTUP TIME | Configurable. Cold boot with EGLFS: 6-7 sec, with Weston: 8-9 sec. |
| SOFTWARE FRAMEWORKS & TOOLS | |
| DEVELOPMENT ENVIRONMENT | Virtual Machine or Native Linux |
| PROGRAMMING | Supported languages include C++, C, QML, JavaScript, Python, HTML5, IEC61131-3. |
| GCC COMPILER | : aarch64-poky-linux-GCC 8.3.0 C++17 or newer |
| UI FRAMEWORKS | Qt 5.12+ Open Source. Will support Qt 6, expected Q4 2020. Qt Commercial is optional, enables closing access to the system. Support for Web frameworks. |
| WINDOWING | Weston, Qt Wayland. Direct EGLFS is available if windowing is not required. |
| APPLICATION PLATFORM | |
| LinX Software Suite, open and modular platform based on Qt, common for all CCpilot products. Examples of modules and components listed below. | |
| GUI DESIGN | UX Designer, a pre-built virtual machine with Qt Creator, compilers, libraries, graphical components and templates. |
| CAN NETWORKING | Fieldbus Access, easy configuration of J1939 and CANopen networks. |
| ISOBUS | Universal Terminal, Task Controller and guidance. |
| TELEMATICS | Enterprise Connect, including configurable soft telematics controller and backend web solution. |
| SMART DEVICE INTEGRATION | Smart Connect, framework for building apps and integrating smart phones and tablets (Service tool, secondary HMI). |
| REMOTE APPLICATION ACCESS | VNC server and client, web browser and server |
| SOFT PLC | CODESYS 3.5 |
| DIGITAL VIDEO | Ready-made solution for displaying digital camera streams over Ethernet. RTP, MPEG4, MJPEG, H.264 (4Kp30) and H.265. |
| PLATFORM SUPPORT | |
| Below you find specifications of features for which the product platforms has inherent hardware support. These are not currently available in the standard product specified above but may be added for a specific, larger customer program. | |
| CAN FD | BSP/SDK can be developed on request. |
| TOUCH SCREEN SENSITIVITY | Option to have touch controller calibrated for special use cases. |
| SECURITY | RSA/AES, elliptic-curve cryptography, key storage, secure boot-up, signed applications, docker. Hardware level virtualization for multi OS systems. |
| QT AUTOMOTIVE | Supports Qt Automotive, featuring e.g. safe rendering and IVI applications. |
| ANDROID | Supports Android |
| OS IN CO-PROCESSOR | Supports use of an RTOS in the integrated Cortex-M4F companion microcontroller (co-processor). |
| CABLES | |
| 859-313 | Cable, M12 8-pol female A-code to open ended 2m |
| C100150 | Power only demo cable |
| C000142-22 | Power/CAN, ignition development cable |
| 859-313 | M12 8-pol Female A-coded 2m to loose ends. For power/ CAN/ ignition |
| USB | |
| C000082-98 | M12 to std USB |
| ETHERNET | |
| C000082-26 | M12 to std Eth |
| MOUNTING | |
| C000152-48 | Panel mounting bracket |
Display computers with iMX8 application processor
Learn about the CrossControl platform for machine intelligence as Anders Svedberg and Dr Markus Wallmyr showcase our next generation display computers with iMX8 application processor.
MULTI-FUNCTIONAL SMART FARMING TERMINALS
Our new iMX8-powered display computers, and the new central display controller concept driving multiple monitors, are developed to answer the demand from Smart farming for HMI systems to deliver a range of functionality, from UT & TC terminals to solutions for ADAS and automation.
Support for fast boot
Fast boot is a necessity in many applications and impacts user experience of the machine as a whole. We offer solutions for reducing boot-time to a minimum.

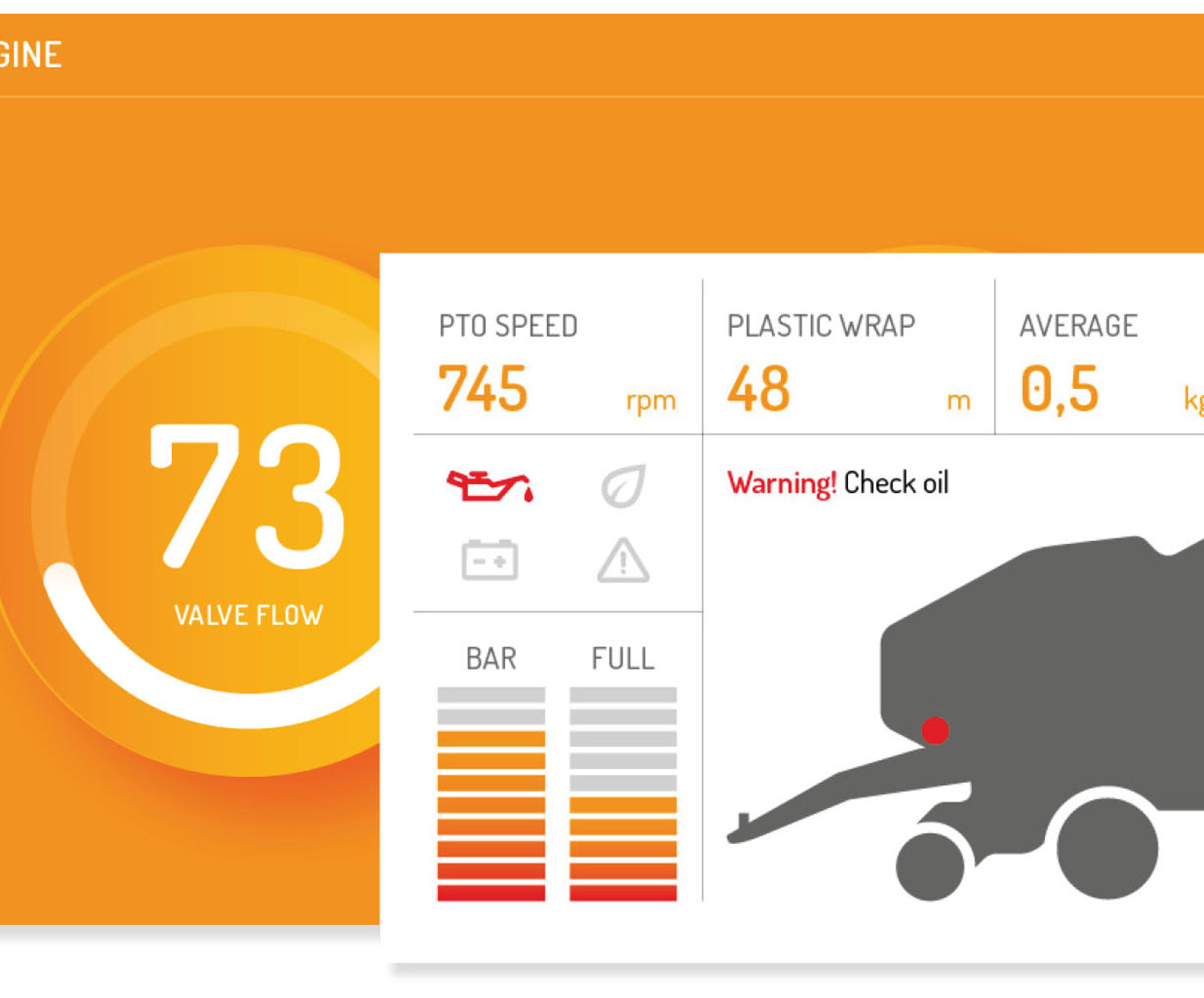

Top notch digitized instrumentation

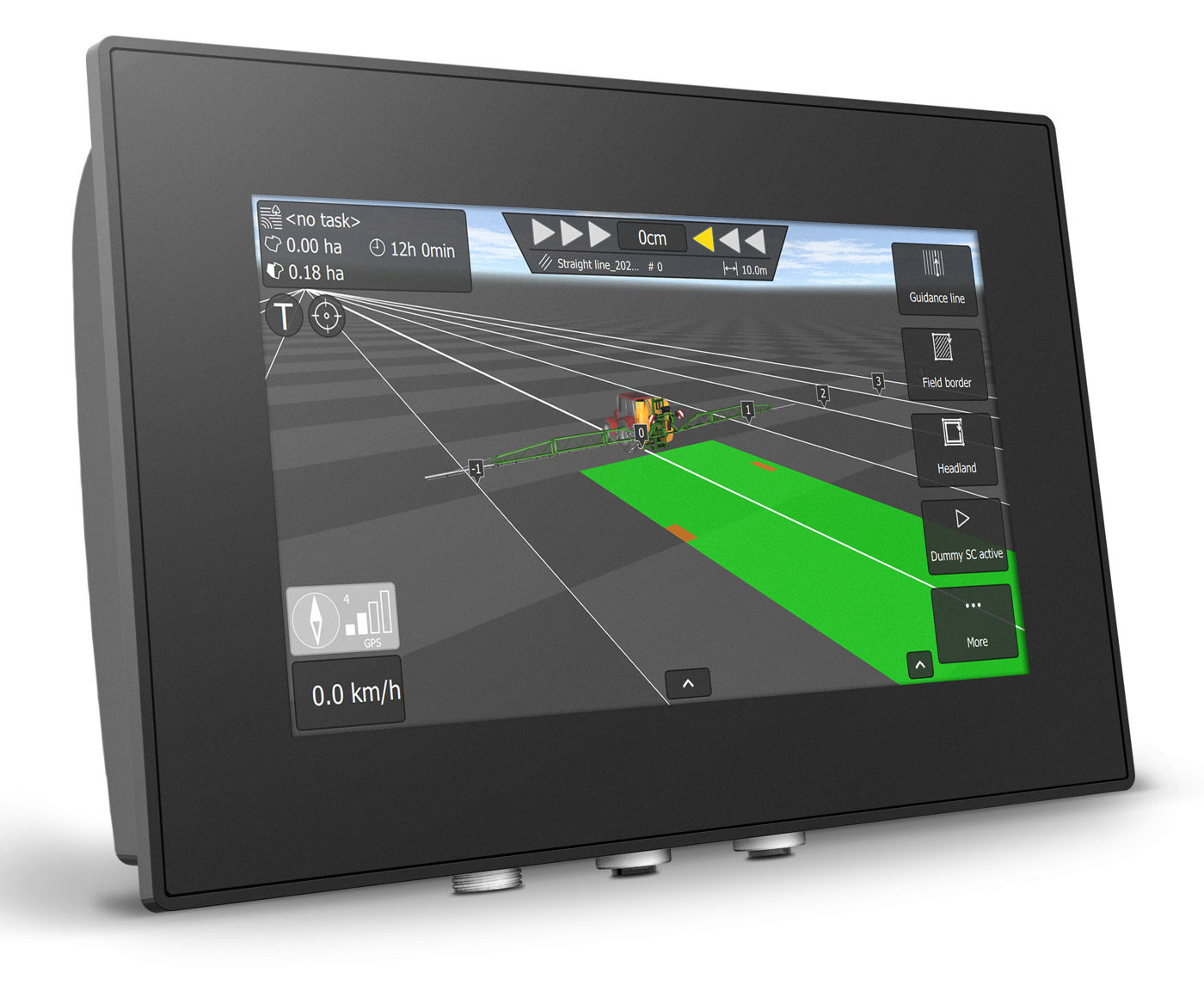

With CCpilot V700 you can build an advanced, multi-instrument display that improves safety and user experience.
Knowledge BaseA great source of information that expands upon
the information outlined in our product manuals.
Here you can find project demos, code examples,
FAQs, and general product information for developers.
Video trainingOur library of educational visual media for all
our software components. The guides can take
a user from getting started through to advanced
development for any of our products.
Field Application EngineeringOur Field Application Engineers are specialists in the capabilities of our products. They support customers with advice and examples on solutions and how to implement functionality in the most efficient way for different use cases and applications, based on our software platform.
Application developmentOur application development services are provided by our experienced team with a broad range of experience of display and on-board computing solutions, including instrumentation, process control, guidance, video, telematics and more.
Need a starter kit?We offer product starter kits that help you get going fast.
You select which software to be pre-installed and the cable
adaptors you need and get all shipped in one bundle.
Life Cycle ManagementAt CrossControl we have developed a robust product
Life Cycle Management policy that covers our
devices from initial inception to end-of-life status,
a period usually of 15 years.
