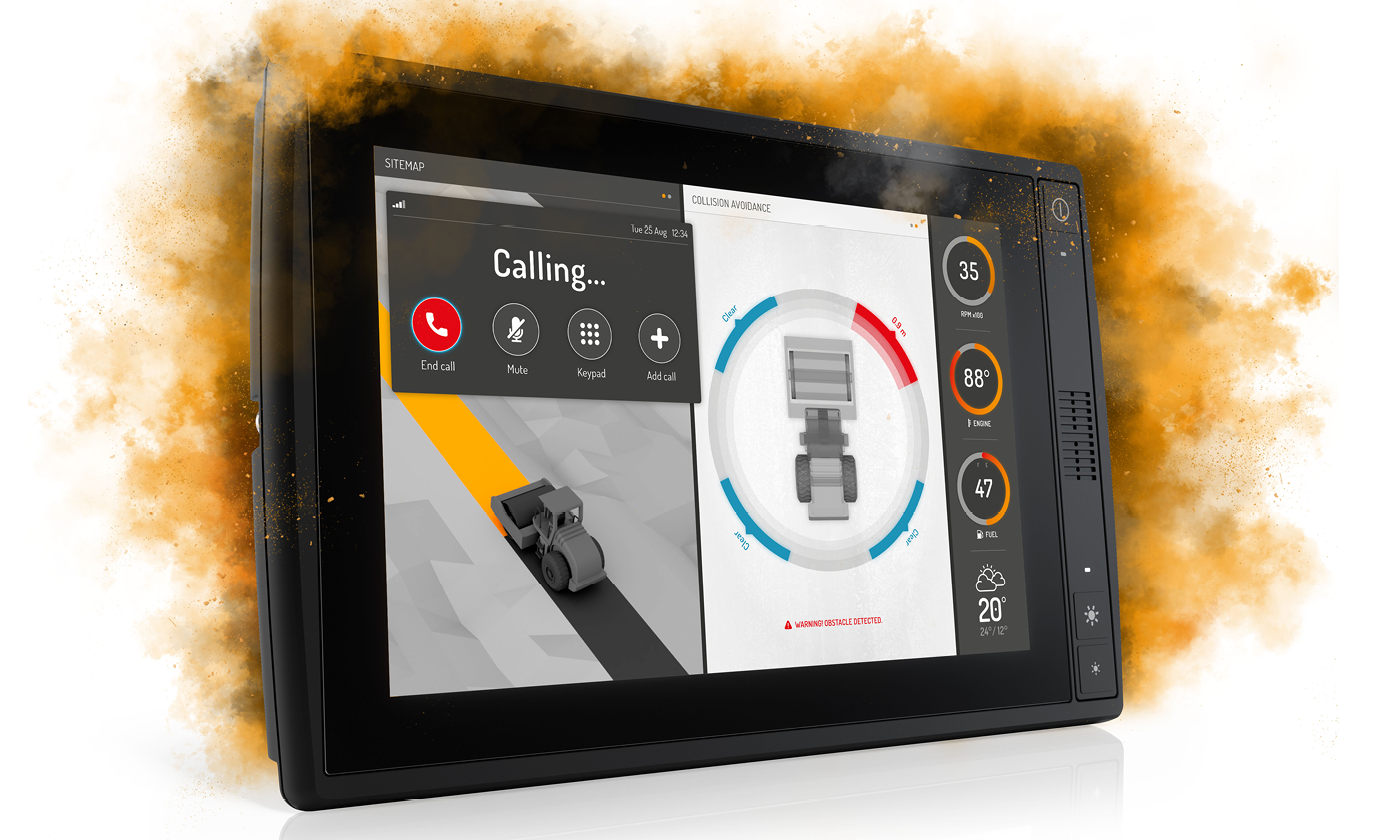

CCpilot X1200 display computer construction GUI in dust cloud.

CCpilot X1200

LAPTOP FUNCTIONALITY AND PERFORMANCE FOR THE CABIN

The CCpilot X1200 is designed to meet tough environmental requirements and excel even in demanding applications.

Based on efficient Intel Atom® quad-core performance the X1200 is a truly multipurpose on-board computer for business logic and advanced HMIs with Intel® UHD Graphics.

With its optically bonded 12" widescreen IPS-type display it provides plenty of GUI real estate, enabling concurrent visualization of multiple applications.

The widely supported x86 architecture and the X1200 offer the choice of a Linux or Windows 10 operating system. This means that system developers can utilize all the powerful toolchains, software components, and 3rd party applications available in either the Windows or Linux domains.

The CCpilot X1200 fully supports modern, and next-generation, graphics APIs and frameworks, making it possible to realize advanced systems without the limitations or restrictions due to leaner hardware. Plus, the display provides an accessible CFAST storage slot for in-field expandability, video recording, encryption, and storage upgrades. It can also integrate 3rd party peripherals over USB.

With its vast software capabilities and state-of-the-art hardware, the CCpilot X1200 brings the power and flexibility of a complete PC platform to the cab of mobile machinery.

Download area

Specification

Below you find an overview specification of CCpilot X1200. The same information is found in the product leaflet which is available for download and in printed form. Please note that product information may change over time and the latest and correct information is always found on this website. You find additional information in the technical manual and software manuals.

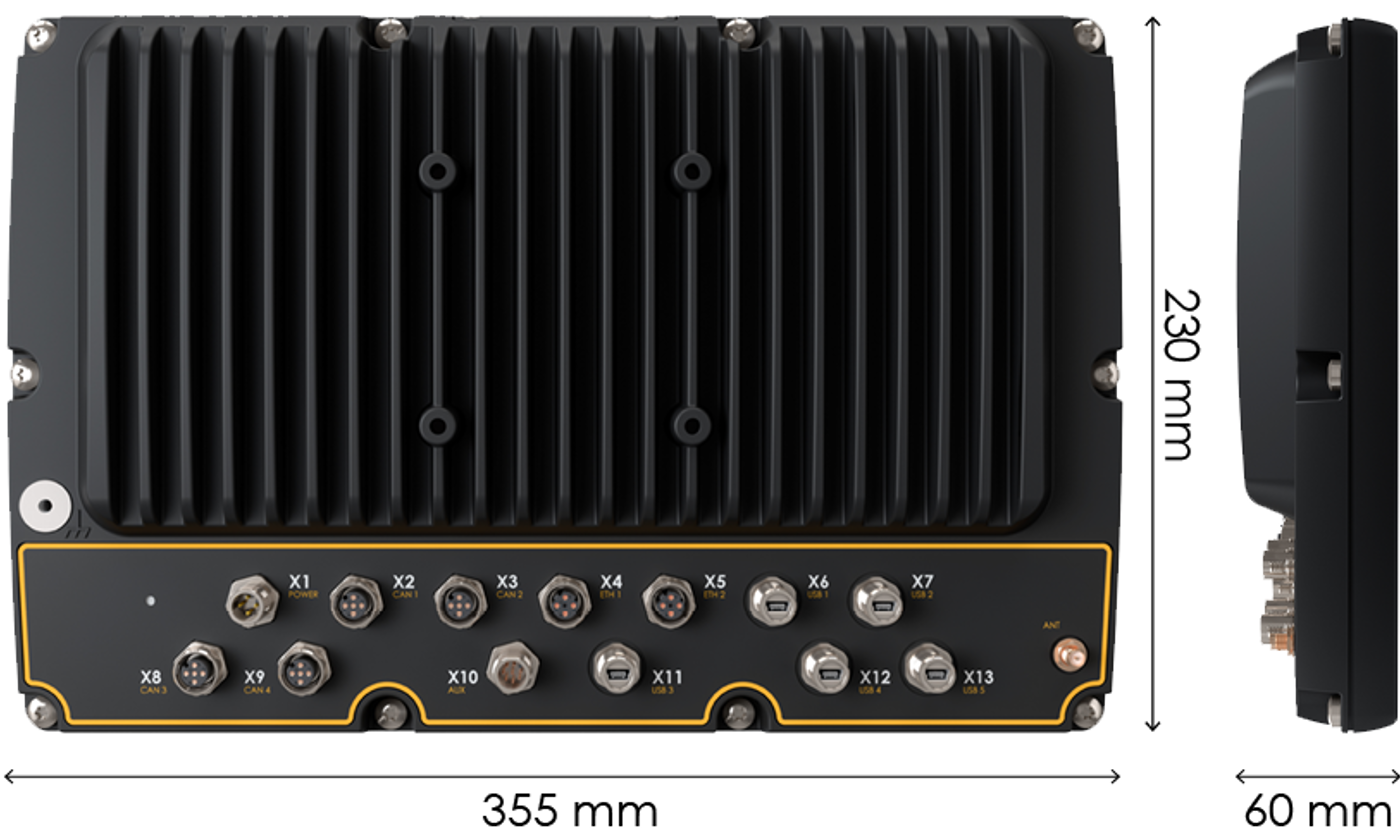

Backside and sideview of CCpilot X1200 with measurements.
COMPUTING CORE
OVERVIEW lntel® Atom® X6413E Elkhart Lake CPU, with powerful integrated GPU
CPU 4 cores x 1.50 GHz (boost to 3,0 GHz), 4 threads
GPU High performance Intel UHD Graphics processing unit for hardware acceleration, 3D, 2D & vector graphics. 200 GFlops.
STORAGE 64GB pseudo-SLC CFast
RAM 8GB DDR4 RAM
DISPLAY
TYPE IPS Type with >88° viewing angles in all directions
COVER LENS Chemically hardened glass
OPTICAL BONDING Yes. IPS screen, cover lens and touch screen optically bonded to achieve sunlight readability.
SIZE AND RESOLUTION 12.1" 16:10 WXGA, 1280x800 pixels
COLOR DEPTH 24 bit
CONTRAST RATIO* 1000:1
BRIGHTNESS* Typ. 1000 cd/m²
DIMMING Yes, in steps, 1-100%
AMBIENT LIGHT SENSOR Yes, enabling automatic dimming
HMI
TOUCH SCREEN Projective Capacitive with up to 10-point multitouch. Calibrated to support interaction with gloves or be in-sensitive to water drops.
STATUS LED RGB LED
SOUND Speaker with configurable tone and volume.
SOFT KEYS 3 configurable buttons on the front of the display. Default function On/Off and Brightness Up/Down
INTERFACES
CAN 2 x CAN-FD ports, 4 x CAN-FD ports available as an option, physical layer ISO 11898 2.0B. SAE J2284-1 to SAE J2284-5, Configurable bit rate.
USB 5 x USB 2.0 high speed
ETHERNET 2 x Ethernet. 10/100 Base-T
WIRELESS Optional Bluetooth and WiFi with antenna connector
SERIAL 1 x RS232, 2 pin, Rx and Tx
POWER SUPPLY 12 or 24 VDC Nominal Voltage. Voltage range 10-34 VDC. CPU and communication operational down to 6 VDC
AUDIO 1 x Stereo Line Out
KEY SWITCH 1 key switch input, for start-up/suspend/resume/shutdown.
MECHANICAL
HOUSING MATERIAL Aluminium
INSTALLATION VESA 75 bracket
CONNECTORS 3 x 5 pin DIN M12 for power and CAN ports. 2 x 4 pin DIN M12 for Ethernet. 2 x M12 microUSB. 1 x 8 pin DIN M12 Auxiliary connection and serial port. 1 x Mini SMA antenna connector.
DIMENSIONS (mm) 355 x 230 x 60
WEIGHT (g) < 3500 g
ENVIRONMENTAL SPECIFICATION
IP CLASS IP65
EMC CONFORMITY EN ISO 14982:2009, EN ISO 13766-1:2018
VIBRATIONS IEC 60068-2-64, 0.01g²/Hz 5-200Hz
SHOCK IEC 60068-2-27, 30g/6ms
TEMPERATURE RANGE (°C) Operating: -25 to +70, Storage: -40 to +80
OPERATING SYSTEM
SYSTEM Windows 10 IoT CCLinux
KERNEL 5.15+ (Long Term Support)
COMPUTING AND GRAPHICS APIs Support for advanced UX and computing tasks: OpenGL 4.5, Vulkan, OpenCL 1.2, OpenVG 1.1
SOFTWARE FRAMEWORKS & TOOLS
DEVELOPMENT ENVIRONMENT OS dependent: Windows: PC/Windows tools, e.g. Visual Studio Linux: Native Linux or Virtual machine
PROGRAMMING Support for Windows and Linux tools and languages including C++, C, QML, .net, JavaScript, Python, HTML5
GCC COMPILER x86_64-poky-linux-gcc (GCC) 11.3.0 (or newer)
UI FRAMEWORKS Support for Qt6 and Qt5. Qt Commercial is optional, enables closing access to the system. Support for Web frameworks.
WINDOWING Weston, Qt Wayland. X Wayland. Direct EGLFS is available if windowing is not required.
APPLICATION PLATFORM
LinX Software Suite, open and modular platform based on Qt, common for all CCpilot products. Examples of modules and components listed below.
GUI DESIGN UX Designer, a pre-built virtual machine with Qt Creator, compilers, libraries, graphical components and templates.
CAN NETWORKING Fieldbus Access, easy configuration of J1939 and CANopen networks.
REMOTE APPLICATION ACCESS VNC Server and client, web browser and server.
SOFT PLC CODESYS 3.5
DIGITAL VIDEO Ready-made solution for displaying multiple digital camera streams over Ethernet. RTP, MPEG4, MJPEG, H.264 (4Kp30) and H.265. Support for controlling camera settings like resolution and frame rate.
PLATFORM SUPPORT
Below you find specifications of features for which the product platform has inherent hardware support. These are not currently available in the standard product specified above but may be added over time in the generic evolution of the product, or added for a specific, larger customer program.
LARGER STORAGE Up to 128GB
RAM Up to 16GB DDR4
* Typical value

Downloads

Device Downloads

REMOTE CONNECTIVITY

Virtual Network Computing enables a graphical desktop-sharing system that uses the RFB, Remote Frame Buffer, protocol to remotely interact with another device.

Graphic showing display with vehicles representing remote connectivity.

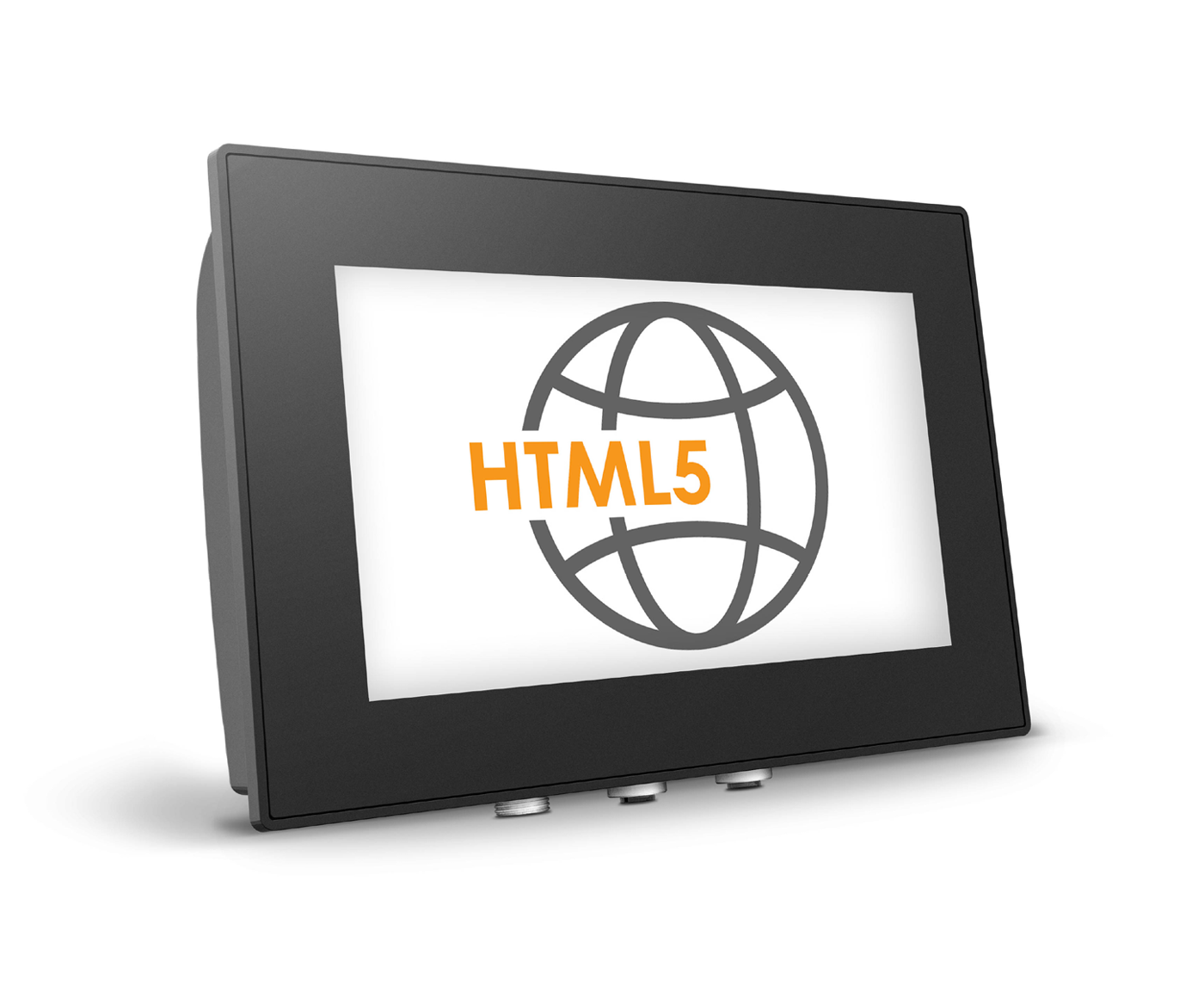

CCpilot V700 display computer with HTML5 graphics.

UNLOCK FUNCTIONALITY AND RESOURCES WITH HTML5

Evolved from the web application and cloud user interfaces and services, HTML5 is a widely used mark-up language with enormous developer support.

MATLAB

Freedom to add your own functionality and features – Integrate numerical computing platforms, like MATLAB, into your deployment.

Several display computer with MATLAB icon as HMI.
