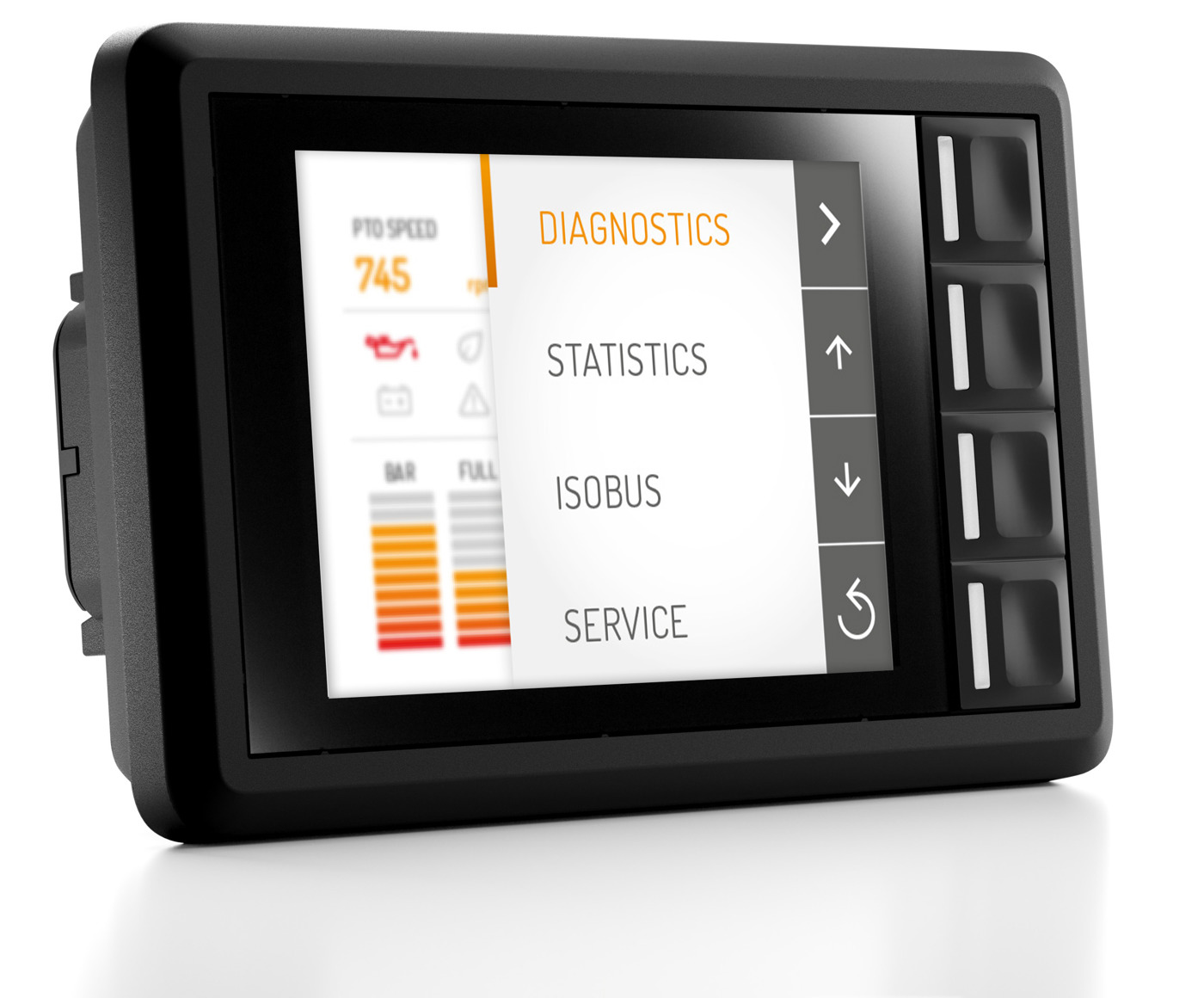

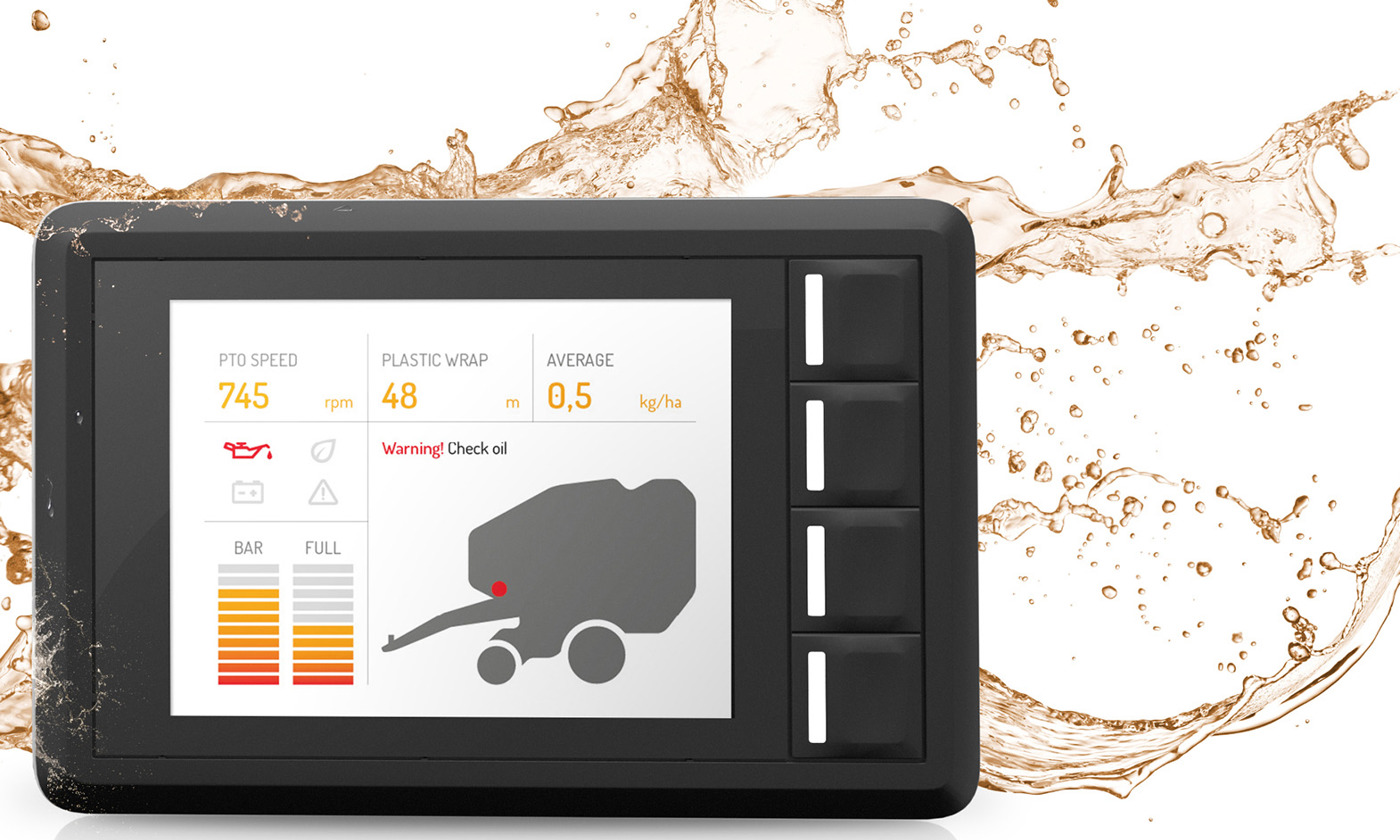

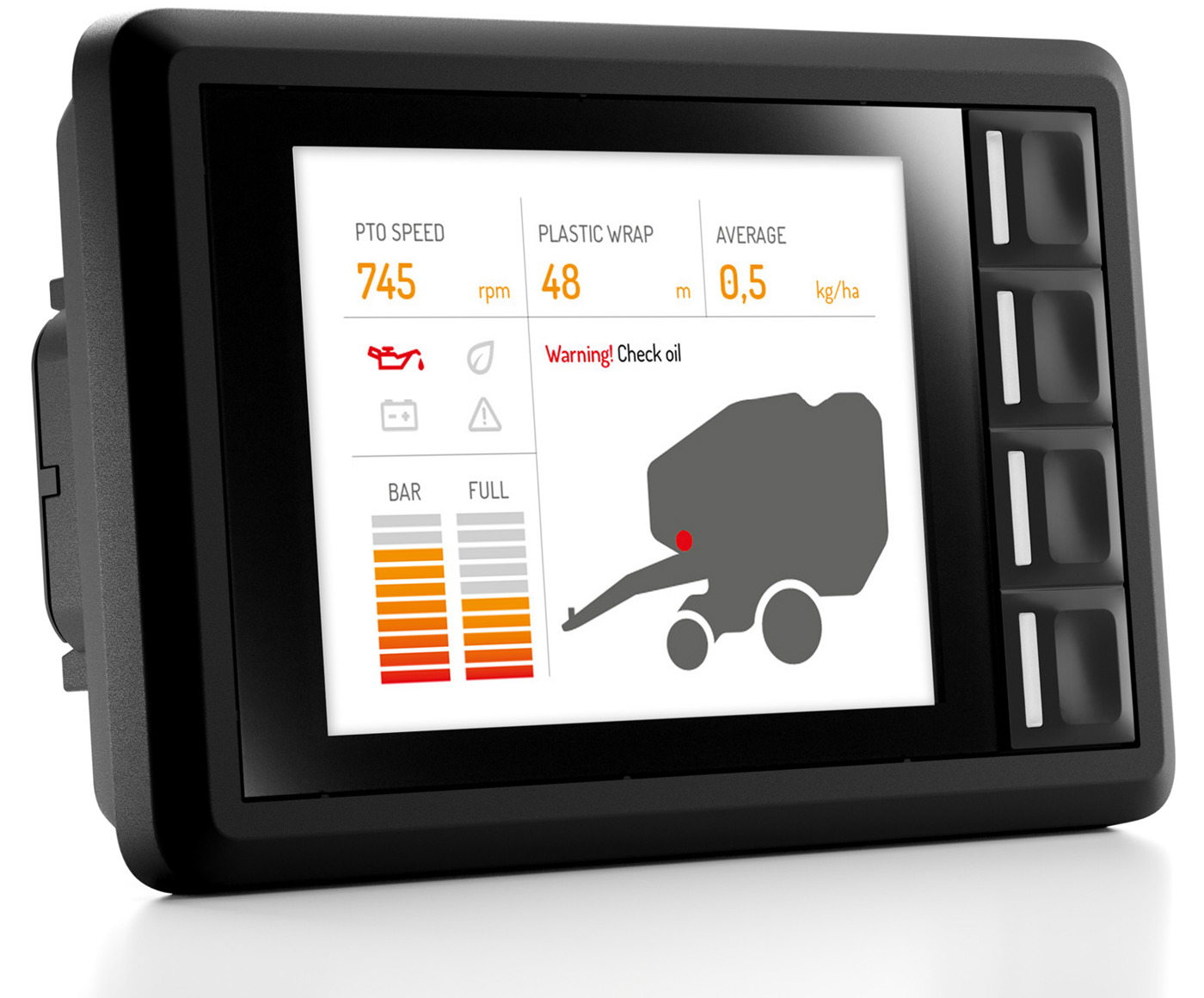

CCpilot VI is a dynamic 3.5" QVGA display with a full CC Linux operating system. The open LinX software platform offers a choice of powerful tools for application development.
For example, developers can choose to create the Graphical User Interface in Qt. This enables fast design of premium user interfaces. With 4 freely configurable, backlit soft keys, operators can interact efficiently with the system. CCpilot VI offers multifunctional capability and can be used as instrumentation display, machine control HMI, Electronic manual, video monitor and more. The advanced features of the CCpilot VI make it possible to develop a more space efficient
Graphical User Interface, saving real estate and cost. CCpilot VI offers multifunctional capability and can be used as instrumentation display, machine control HMI, Electronic manual, video monitor and more. The advanced features of the CCpilot VI make it possible to develop a more space efficient Graphical User Interface, saving real estate and cost.
Below you find an overview specification of CCpilot VI. The same information is found in the product leaflet which is available for download and in printed form. Please note that product information may change over time and the latest and correct information is always found on this website. You find additional information in the technical manual and software manuals.
| COMPUTING CORE | ||
| MAIN PROCESSOR | Freescale i.MX6 SoloX | |
| CO PROCESSOR | Runs watchdog functions controlling integrity of product, for increased reliability and safety. | |
| STORAGE | 2GB eMMC flash for operating system and applications. | |
| RAM | 512 MB SDRAM | |
| CPU | Freescale i.MX6 SoloX | |
| GPU | Integrated Graphics Processing Unit supporting hardware accelerated 2D, 3D and vector graphics. | |
| DISPLAY | ||
| TYPE | TFT with LED backlight. | |
| COVER LENS | Glass with anti-glare treatment. | |
| SIZE AND RESOLUTION | 3.5" QVGA, 320*240 pixels | |
| COLOR DEPTH | 18 bit | |
| CONTRAST RATIO | 1000:1 | |
| BRIGHTNESS* | 520 Cd/m² | |
| DIMMING | Dimming 0 -100%. Dimming can be controlled manually via soft keys or from the software application. | |
| HMI | ||
| SOFT KEYS | 4 soft keys, configurable. Soft keys can be used as function keys for the GUI, to control Power On/Off, to control display brightness etc. Backlight indicators with individual ON/OFF. | |
| BUZZER | Configurable buzzer for alarms and notifications. | |
| CAN | 1 x CAN, physical layer ISO11898 2.0B and J1939-11. Bitrate configurable 20 kbps - 1 Mbps. | |
| ETHERNET | 1 x Ethernet. 10/100 Base-T. | |
| USB | 1 x USB 2.0. | |
| INPUTS | 4 configurable inputs (voltage 0-5V, resistive, frequency, digital in with PU/PD). 3 analog inputs, voltage 0-5V. | |
| OUTPUTS | 2 configurable outputs, low-side type, 1A. May be used for continuous driver or PWM output. | |
| POWER SUPPLY | 12 or 24 VDC nominal voltage. Voltage range 6-32 VDC. | |
| KEY SWITCH | 1 x Key switch input, for start-up/shutdown. | |
| SOFTWARE | ||
| OPERATING SYSTEM | Linux 1.4.2.0 | |
| BSP & SDK | Yes | |
| CCAUX API | Power management, diagnostics, startup and sleep behavior configuration, button configuration, LED control, buzzer, etc. | |
| SOFTWARE APPLICATION PLATFORM | LinX Software Suite, basic package. Extension modules available, eg. CODESYS. | |
| OPERATING SYSTEM | ||
| SYSTEM | CCLinux, Yocto based Linux | |
| KERNEL | 4.1.44 | |
| BSP | Yes, available to create a custom Linux image | |
| SOFTWARE FRAMEWORKS & TOOLS | ||
| DEVELOPMENT ENVIRONMENT | Linx Virtual Machine or Native Linux | |
| PROGRAMMING | C and C++ | |
| GCC COMPILER | arm-poky-linux-gcc (GCC) 7.3.0 | |
| UI FRAMEWORKS | Qt 5.12 planned move to Qt 5,15 | |
| APPLICATION PLATFORM | LinX Software Suite, open and modular platform based on Qt, common for all CCpilot display products. Examples of modules and components listed below. | |
| GUI DESIGN | UX Designer, a pre-built virtual machine with Qt Creator, compilers, libraries, graphical components and templates. | |
| CAN NETWORK | Fieldbus Access, easy configuration of J1939 and CANopen networks. Enterprise Connect, including configurable soft telematics controller and backend web solution. | |
| TELEMATICS | Smart Connect, framework for building apps and integrating smart phones and tablets (Service tool, secondary HMI). | |
| REMOTE APPLICATION | VNC server and client, web browser and server | |
| SOFT PLC | CODESYS 3.5 | |
| DIGITAL VIDEO | Ready-made solution for displaying digital camera streams over Ethernet | |
| ENVIRONMENT | ||
| IP CLASS | IP66 and 67 | |
| EMC CONFORMITY | 2004/108/EC, ISO 14982:2009, ISO 13309:2010, ISO 13766-1:2018 | |
| VIBRATIONS | 0.02g²/Hz, 5-500Hz 3x3h | |
| SHOCK | ±50g /11ms ±3 x3, 18 total shocks | |
| TEMPERATURE RANGE | Operating: -20 to +70 Storage: -30 to +80 | |
| ENCLOSURE | ||
| HOUSING MATERIAL | Plastic PBT+PC | |
| MECHANICAL INSTALLATION | Flush/panel mounting or mounting on stand/arm with diamond plate. | |
| CONNECTORS | 2 x Deutsch DTM06-12 connectors. | |
| SIZE AND WEIGHT | ||

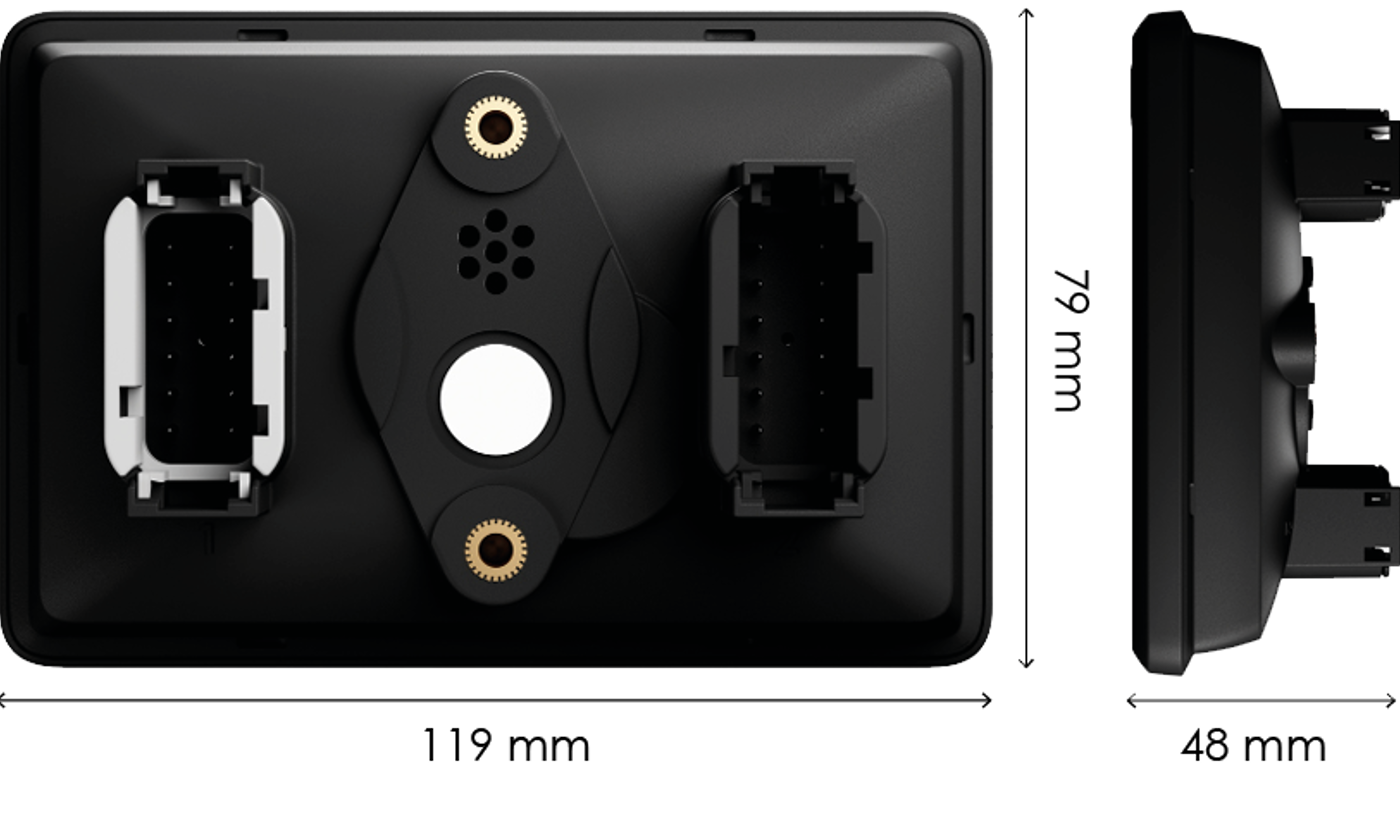

| W x H x D (mm) | 119 x 79 x 48 | |
| WEIGHT (kg) | 0.25 | |
| ACCESSORIES & KITS | |
| C000040-209 | Connectors, contacts and wedge lock for cabling to CCpilot VC / CCpilot VI |
| LAB CABLE | |
| C000124-66 | Power cabel for lab environment |
| C000142-016 | Cable for tests of CCpilot VI2 |
| MOUNTING | |
| C000144-44 | Rubber frame (panel mounting collar.) |
| C000135-81 | Mounting bracket (A spring to tighten CCpilot VI in panel mounting in place. Attached to the RAM mount screws.) |
