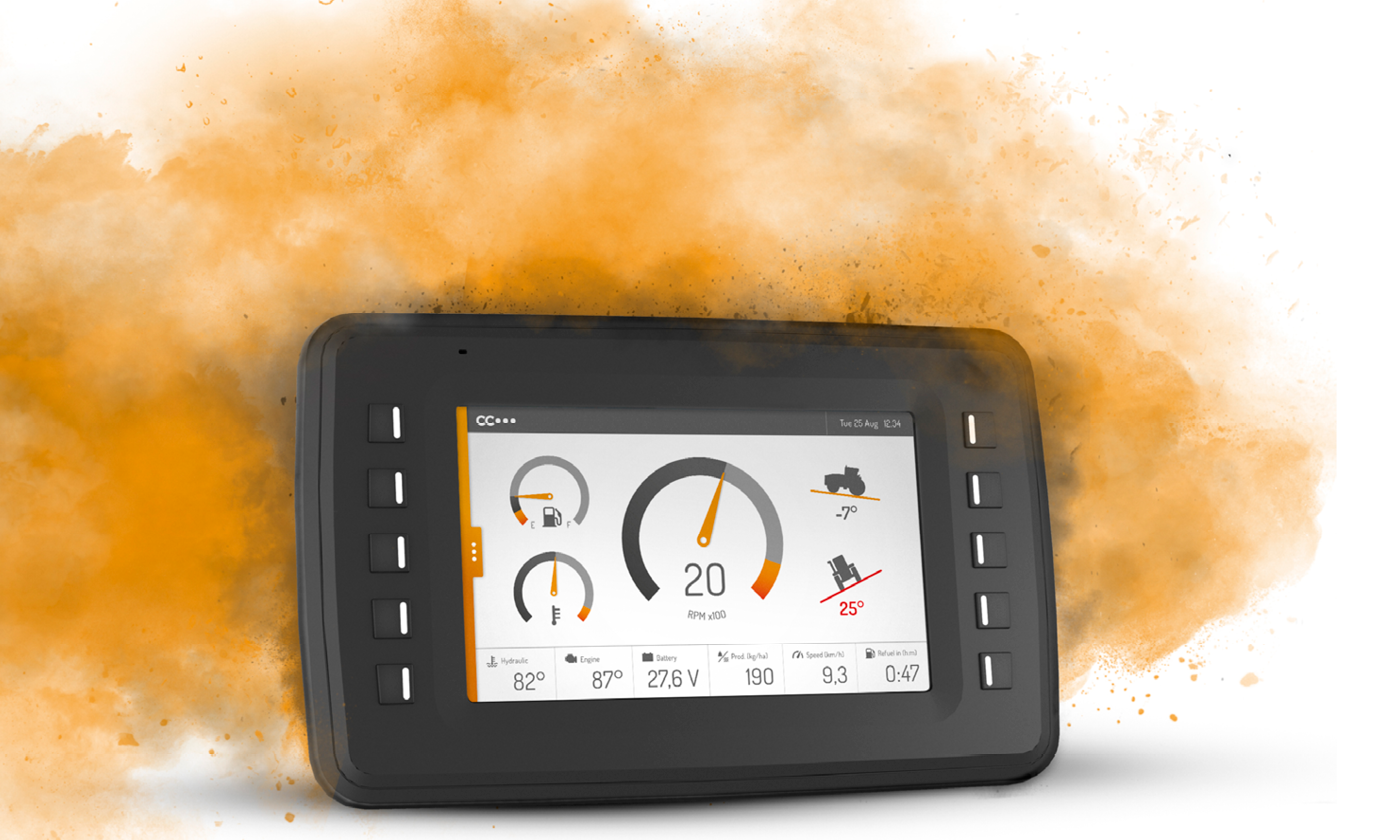

The CCpilot VA is a 7'' full colour display with a powerful ARM CPU. The display offers true sunlight readability and the GPU accelerated graphics create a rich user experience.
The open LinX Software Suite offers a variety of developer friendly tools to enable quick application development and deployment. The latest version of the CCpilot VA is equipped with an IPS PCAP touch screen housed in a flat form factor for seamless integration into OEM hardware. The uses of this multi-functional display computer include; instrumentation display, machine
control, system monitory, diagnostics and electronic operator guidance.
Below you find an overview specification of CCpilot VA. The same information is found in the product leaflet which is available for download and in printed form. Please note that product information may change over time and the latest and correct information is always found on this website. You find additional information in the technical manual and software manuals.
| COMPUTING CORE | |
| MAIN PROCESSOR | Freescale i.MX 537, 32 Bit ARM processor. Runs freely programmable Linux system and LinX Software Suite base package. |
| CO PROCESSOR | Runs watchdog functions controlling integrity of product, for increased reliability and safety. |
| STORAGE | 512 MB NAND flash for operating system and applications |
| RAM | 512 MB DDR3 |
| CPU | Freescale i.MX 537 |
| GPU | Integrated Graphics Processing Unit supporting hardware accelerated 2D, 3D and vector graphics. |
| DISPLAY | |
| TYPE | TFT with LED backlight. |
| COVER LENS | Glass |
| SIZE AND RESOLUTION | 7" WVGA, 800 x 480 pixels or 7" WSVGA 1024 x 600 pixels |
| COLOR DEPTH | 24 bit |
| CONTRAST RATIO | 600-800:1 (model dependent) |
| BRIGHTNESS* | 500-850 cd/m² |
| DIMMING | Automatic dimming through ambient light sensor. Dimming can be controlled manually via soft keys and/or touch screen. |
| OPTICAL BONDING | TFT and glass or touch screen optically bonded. Optical bonding is optional on some models. |
| HMI | |
| TOUCH SCREEN | Projected capacitive or resistive |
| SOFT KEYS | 10 soft keys, configurable. Soft keys can be used On/Off, to control display brightness etc. soft as function keys for the GUI, to control Power keys are optional. |
| BUZZER | Configurable buzzer for alarms and notifications. |
| INTERFACES - COMMON FOR ALL VERSIONS | |
| CAN | 2 x CAN, physical layer ISO11898 2.0B and J1939-11. Bitrate configurable 20 kbit/s - 1 Mbit/s. |
| ETHERNET | 1 x Ethernet. 10/100 Base-T. |
| USB | 2 x USB 2.0. 1 in multipin connector and 1 in mini-USB under cover on rear side. |
| SERIAL | 1 x Serial port |
| VIDEO | Up to 2 x Analog Video input. NTSC or PAL. |
| INPUTS | Up to 8 configurable inputs for analog/digital sensors. May be used for measuring resistance/4-20mA with resistor/frequency/digital/analog signals. |
| OUTPUTS | 2 configurable high side outputs for driving up to 1A. May be used for continuous driver or PWM output. |
| POWER SUPPLY | 12 or 24 VDC nominal voltage. Voltage range 9-32 VDC. CPU and communication operational down to 7,5 VDC. |
| KEY SWITCH | 1 Key switch input, for start-up/shutdown. |
| SOFTWARE | |
| OPERATING SYSTEM | Linux 1.3.0.0 |
| SOFTWARE APPLICATION PLATFORM | LinX Software Suite, basic package. Extension modules available, eg. CODESYS. |
| OPERATING SYSTEM | |
| SYSTEM | Yocto Based Linux |
| KERNEL | 2.6.35.3 |
| COMPUTING AND GRAPHICS APIs | OpenGL ES2 |
| DEVELOPMENT ENVIRONMENT | Linx Virtual Machine or Native Linux |
| PROGRAMMING | C and C++ |
| GCC COMPILER | arm-none-linux-gnueabi-gcc (Sourcery) 4.6.1 |
| UI FRAMEWORKS | Qt 5.6.4 |
| WINDOWING | No |
| APPLICATION PLATFORM | LinX Software Suite, open and modular platform based on Qt, common for all CCpilot display products. Examples of modules and components listed below. |
| GUI DESIGN | UX Designer, a pre-built virtual machine with Qt Creator, compilers, libraries, graphical components and templates. |
| CAN NETWORK | Fieldbus Access, easy configuration of J1939 and CANopen networks. Enterprise Connect, including configurable soft telematics controller and backend web solution. |
| TELEMATICS | Smart Connect, framework for building apps and integrating smart phones and tablets (Service tool, secondary HMI). |
| REMOTE APPLICATION | VNC server and client, web browser and server |
| SOFT PLC | CODESYS 3.5 |
| DIGITAL VIDEO | Yes |
| ENVIRONMENT | |
| IP CLASS | Up to IP67 |
| EMC CONFORMITY | 2004/108/EC, ISO 14982:2009, ISO 13309:2010 |
| VIBRATIONS | IEC 60068-2-64 Random 0.02g²/Hz 5-2000Hz 3x3h |
| SHOCK | IEC 60068-2-27, 50 g/11ms ±3 x 3 shocks |
| TEMPERATURE RANGE | Operating: -25 to +70 Storage: -40 to +85 |
| ENCLOSURE | |
| HOUSING MATERIAL | Reinforced nylon |
| MECHANICAL INSTALLATION | Panel mounting or mounting on stand/arm |
| CONNECTORS | 3 x Deutsch DTM06-12 connectors, 1 x Mini USB |
| SIZE AND WEIGHT | |
| W x H x D (mm) | 252 x 156 x 51 or 194.2 x 138.2 x 50 |
| WEIGHT (kg) | 0.58-0.65 |
| Accessories & Kits | |
| C000040-206 | Starter kit CCpilot VA, inkl: C000134-80, cabling, AC/DC and table stand |
| C000040-210 | Connectors, contacts and wedge lock for cabling to CCpilot VA |
| LAB CABLE | |
| C000124-76 | Cable, J1 for bench test CCpilot VA |
| C000124-77 | Cable, J2 for bench test CCpilot VA |
| C000124-78 | Cable, J3 for bench test CCpilot VA |
| USB | |
| C000138-72 | Cable CrossLink AI to CCpilot VC/CCpilot VA, M12 male 90° 5-pol A-code to mini-USB cable 500mm |
| C000138-73 | Cable CrossLink AI to CCpilot VC/CCpilot VA, M12 male 90° 5-pol A-code to mini-USB cable 2950mm |
