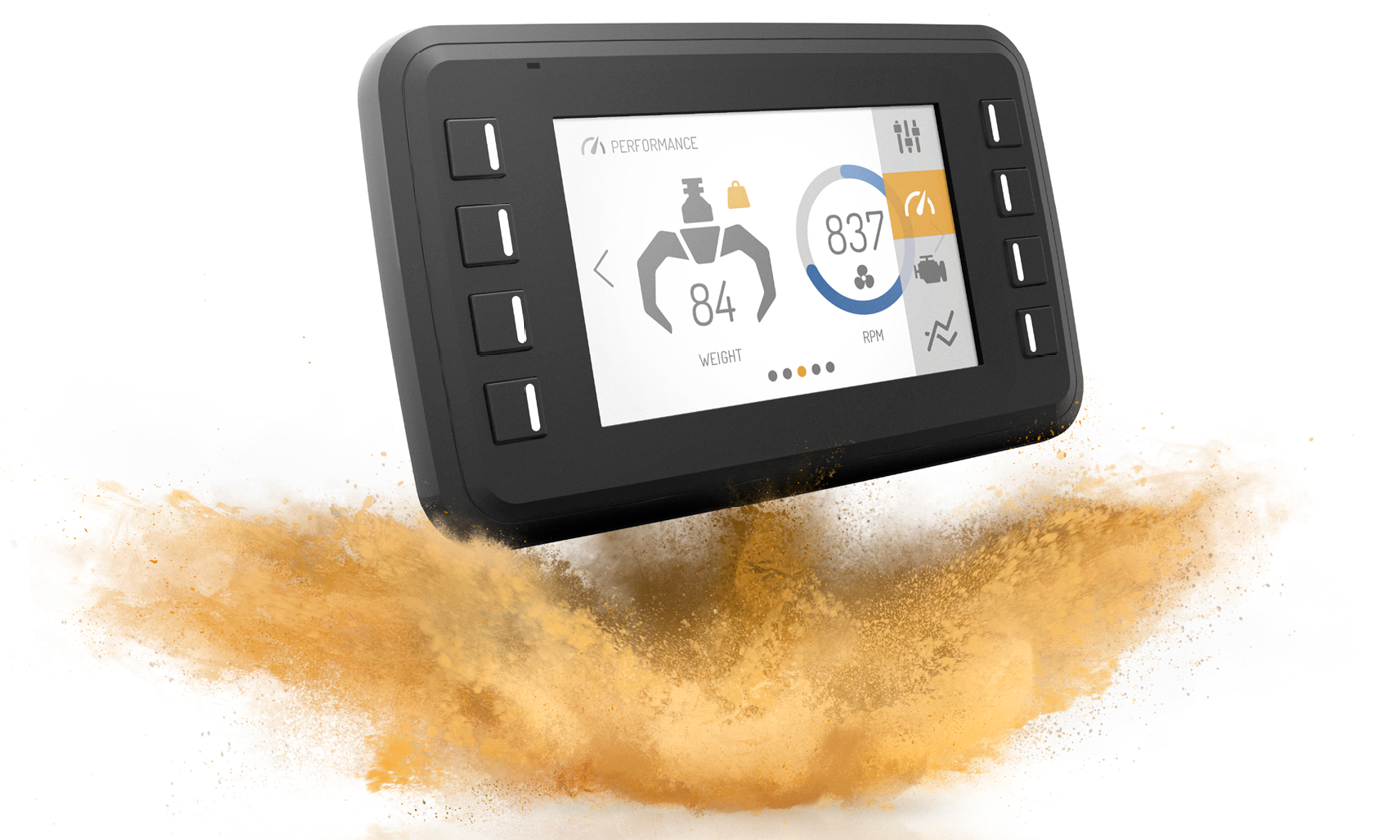

CCpilot VC is a 5’’ full-colour display with a powerful ARM CPU.
The Linux based operating system and optional LinX Software Suite offers a choice of powerful tools for application development. This, together with a WVGA high brightness display and hardware accelerated 2D, 3D and vector graphics, enables fast design of premium user interfaces.
With optional touch screen and configurable soft keys, operators are offered an intuitive interaction with the system. CCpilot VC has multifunctional capability and can be used as instrumentation display, machine control HMI, video monitor, electronic manual and more.
Below you find an overview specification of CCpilot VC. The same information is found in the product leaflet which is available for download and in printed form. Please note that product information may change over time and the latest and correct information is always found on this website. You find additional information in the technical manual and software manuals.
| PRODUCT SPECIFICATION | |
| MAIN PROCESSOR | Freescale i.MX 537, 32 Bit ARM processor. Runs freely programmable Linux system and LinXTM Software Suite base package. |
| COPROCESSOR | Runs watchdog functions controlling integrity of product, for increased reliability and safety. |
| STORAGE | 512 MB NAND flash for operating system and applications. |
| RAM | 512 MB DDR3 |
| CPU | Freescale i.MX 537 |
| GPU | Integrated Graphics Processing Unit supporting hardware accelerated 2D, 3D and vector graphics. |
| DISPLAY | |
| TYPE | TFT with LED backlight. |
| COVER LENS | Glass with anti-reflective treatment. |
| SIZE AND RESOLUTION | 5" WVGA, 800 x 480 pixels |
| COLOR DEPTH | 24 bit |
| CONTRAST RATIO | 600:1 |
| BRIGHTNESS* | 800 Cd/m2 without touchscreen, 700 Cd/m2 with touch screen. |
| DIMMING | Automatic dimming through ambient light sensor. Dimming can be controlled manually via soft keys and/or touch screen. |
| OPTICAL BONDING | TFT and glass optically bonded. Optical bonding is optional. |
| HMI | |
| TOUCH SCREEN | Plastic cover lens with anti-reflective treatment. |
| SOFT KEYS | 8 soft keys, configurable. Soft keys can be used as function keys for the GUI, to control Power On/Off, to control display brightness etc. Soft keys are optional. |
| BUZZER | Configurable buzzer for alarms and notifications. |
| INTERFACES | |
| CAN | 2 x CAN, physical layer ISO11898 2.0B and J1939-11. Bitrate configurable 20 kbit/s - 1 Mbit/s. |
| ETHERNET | 1 x Ethernet. 10/100 Base-T. |
| USB | 2 x USB 2.0. 1 in multipin connector and 1 in mini-USB under cover on rear side. |
| VIDEO | 1 x Analog Video input. NTSC or PAL. |
| INPUTS | 2 configurable inputs for analog/digital sensors. May be used for measuring resistance, frequency, voltage, digital input or 4-20mA current loop (measuring voltage across an external 250 ohm resistor). |
| OUTPUTS | 2 configurable high side outputs for driving up to 1A. May be used for continuous driver or PWM output. |
| POWER SUPPLY | 12 or 24 VDC nominal voltage. Voltage range 9-32 VDC. CPU and communication operational down to 6,0 VDC. |
| INTERFACES - STANDARD VERSION | |
| KEY SWITCH | 1 x Key switch input, for start-up/shutdown. |
| SOFTWARE | |
| OPERATING SYSTEM | Linux 1.3.0.0 |
| SOFTWARE APPLICATION PLATFORM | LinX Software Suite, basic package. Extension modules available, eg. CODESYS. |
| OPERATING SYSTEM | |
| SYSTEM | Yocto based Linux |
| KERNEL | 2.6.35.3 |
| COMPUTING AND GRAPHICS APIs | OpenGL ES2 |
| SOFTWARE FRAMEWORKS & TOOLS | |
| DEVELOPMENT ENVIRONMENT | Linx Virtual Machine or Native Linux |
| PROGRAMMING | C and C++ |
| GCC COMPILER | arm-none-linux-gnueabi-gcc (Sourcery) 4.6.1 |
| UI FRAMEWORKS | Qt 5.6.4 |
| WINDOWING | No |

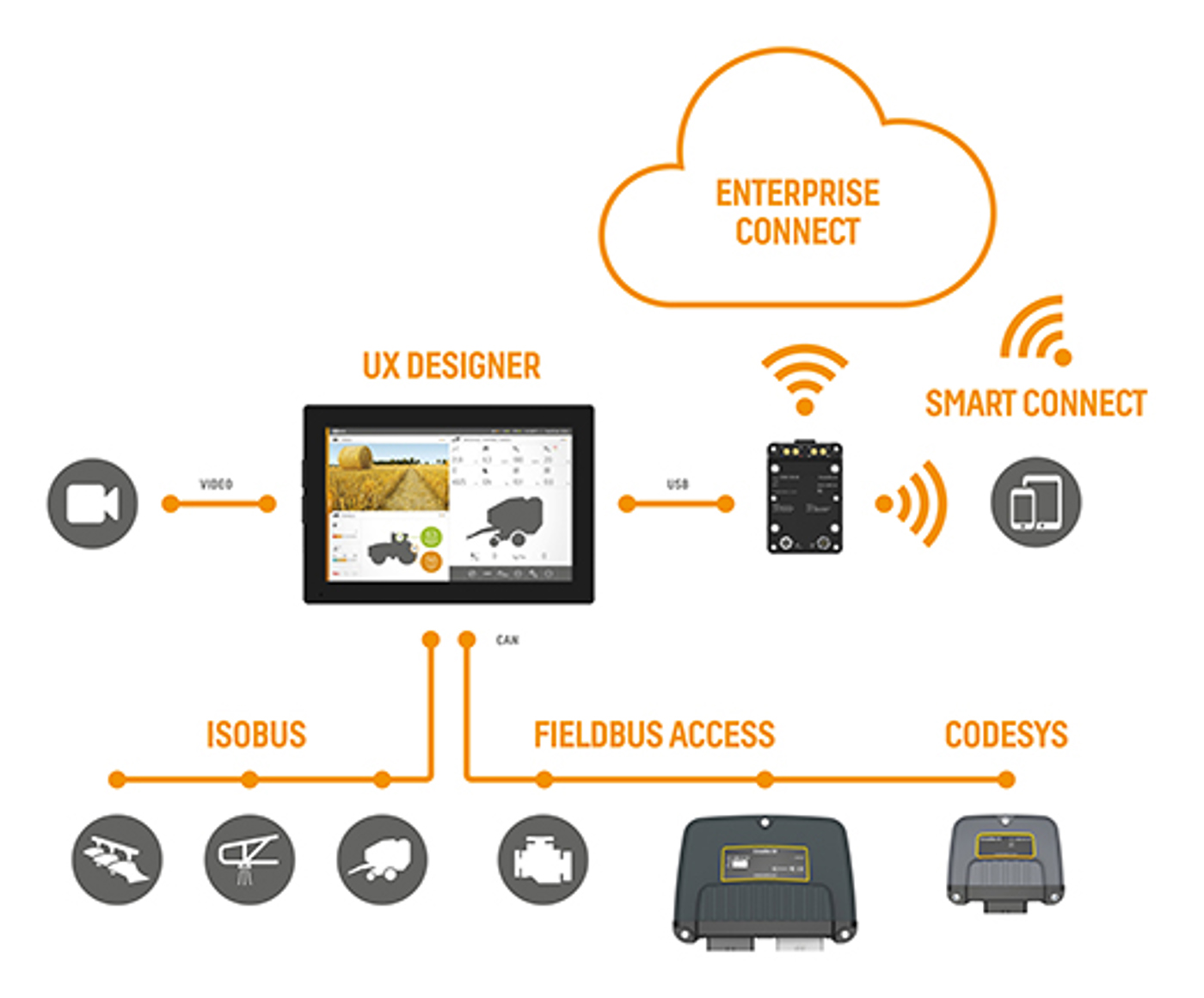

| APPLICATION PLATFORM | LinX Software Suite, open and modular platform based on Qt, common for all CCpilot display products. Examples of modules and components listed below. |
| GUI DESIGN | UX Designer, a pre-built virtual machine with Qt Creator, compilers, libraries, graphical components and templates. |
| CAN NETWORK | Fieldbus Access, easy configuration of J1939 and CANopen networks. Enterprise Connect, including configurable soft telematics controller and backend web solution. |
| TELEMATICS | Smart Connect, framework for building apps and integrating smart phones and tablets (Service tool, secondary HMI). |
| REMOTE APPLICATION | VNC server and client, web browser and server |
| SOFT PLC | CODESYS 3.5 |
| DIGITAL VIDEO | Yes |
| ENVIRONMENT | |
| IP CLASS | IP66 |
| EMC CONFORMITY | 2004/108/EC, ISO 14982:2009 |
| VIBRATIONS | 0,02g2/Hz 5-500 Hz |
| SHOCK | 30g/11ms 3x ±10 bumps |
| TEMPERATURE RANGE | Operating: -25 to +70, Storage: -40 to +85 |
| ENCLOSURE | |
| HOUSING MATERIAL | Reinforced nylon |
| MECHANICAL INSTALLATION | Flush/panel mounting or mounting on stand/arm with diamond plate. |
| CONNECTORS | 2 x Deutsch DTM06-12 connectors, 1 x Mini-USB. |
| SIZE AND WEIGHT | |
| W x H x D (mm) | 187 x 112 x 48 |
| WEIGHT (kg) | 0.42 |
| Accessories & Kits | |
| C000040-186 | Starter kit CCpilot VC Touch, incl: C000135-06, cabling C000124-64, AC/DC and table stand |
| C000040-192 | Starter kit CCpilot VC Soft Keys incl: C000135-02, cabling C000124-64, AC/DC and table stand |
| C000040-193 | Starter kit CCpilot VC Bonded Display incl: C000135-07, cabling C000124-64, AC/DC and table stand |
| C000040-209 | Connectors, contacts and wedge lock for cabling to CCpilot VC / CCpilot VI |
| C000135-81 | Bracket for panel mounting |
| LAB CABLE | |
| C000124-64 | Cable for bench test, CCpilot VC |
| USB | |
| C000138-72 | Cable CrossLink AI to CCpilot VC/CCpilot VA, M12 male 90° 5-pol A-code to mini-USB cable 500mm |
| C000138-73 | Cable CrossLink AI to CCpilot VC/CCpilot VA, M12 male 90° 5-pol A-code to mini-USB cable 2950mm |
Premium GUI design made easy
Explore how our open software platform helps you design a Graphical User Interface that shines. Use our Qt libraries or explore what's out there in the community. No limitations.
Fast application development with CODESYS 3.5
CCpilot VC has support for CODESYS, one of the leading Soft-PLCs in the market. With CODESYS you get Fieldbus Management out of the box and fast application programming of both logics & GUI.
Top notch digitized instrumentation
With CCpilot VC you can build an advanced, multi-instrument display that improves safety and user experience.
