New display computers for precision applications, 2D/3D machine control and ISOBUS

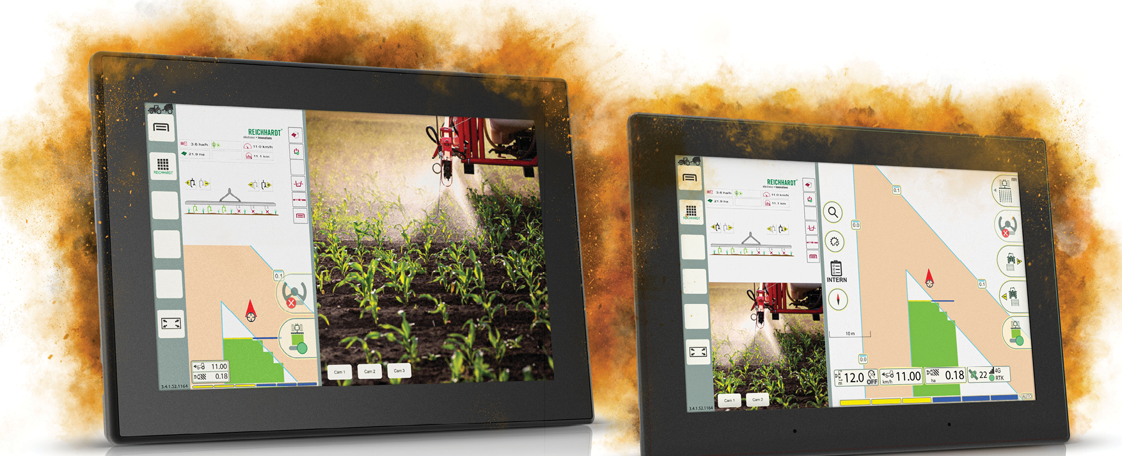

Introducing the CCpilot V1090 and V1290, new displays designed to address the needs of precision applications including ISOBUS terminals, 2D/3D machine control, and add-on control systems.


Key features include a 10 or 12-inch display, robust aluminium housing, accessible USB port, audio notifications, and fast attach/detach connectors for easy removal and theft prevention. It comes with a rich interface set-up for CAN and Ethernet networking, supporting 1000Base-T1 and 1000Base-TX.

With a high brightness, high contrast Wide XGA resolution IPS type display the displays provide intuitive user interaction with multi-touch PCAP (also with gloves). This allows for concurrent visualization of multiple applications and reliable operation in harsh conditions. Readability in direct sunlight is improved by the optically bonded screen that reduces reflections and eliminates fogging.

The displays are available with LinX, our open and modular software platform. It includes firmware and OS support, pre-packaged application toolchains for Qt and CODESYS, and application modules for commonly required functionality.

Combined with our open software platform and specifically our windowing framework this becomes a very powerful platform for OEM factory fit HMI systems, as it opens avenues for running multiple software systems in parallel. This means that precision functionality, for example ISOBUS & guidance, can run side-by-side with commonly required HMI system features including base process control, instrumentation, vision systems and embedded manuals.

For HMI solutions in which a single display may not provide the screen real estate needed to offer a good user interface the CCpilot V1090 and V1290 has inherent support for an optional display link interface for a secondary monitor in sizes 7”, 10” or 12”, or even a 5” display to act as a smart control pad.

Learn more about CCpilot V1090 >

Learn more about CCpilot V1290 >
